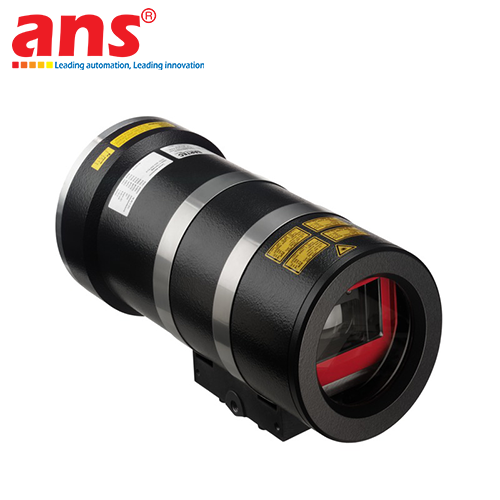

Leuze ODSL 30/V-30M Ex d

Introduction: The Leuze ODSL 30/V-30M Ex d Optical Distance Sensor is a premium, non-contact positioning and displacement instrumentation solution engineered and manufactured 100% in Germany by Leuze electronic. Custom-built as a highly specialized version for hostile environments, this laser sensor is fully enclosed in a rugged, certified Ex d flameproof protective housing. Certified under strict 2G (for Gas hazards) and 2D (for Dust hazards) equipment categories, it represents the absolute safety standard for deployment within hazardous zones of petrochemical refineries, chemical processing hubs, automated industrial spray booths, or underground mining channels. Utilizing a highly focused red laser light source with a sharp 6 mm light spot size, the sensor projects directly against the target object's surface (Against object) to deliver long-range tracking capabilities up to 30 meters (designated by 30M). This heavy-duty configuration comes pre-wired with an integrated, industrial-grade 8-wire cable spanning 15 meters (15,000 mm) in length, giving automation engineers ultimate flexibility when routing signal wiring from hazardous Ex-zones back to a safe control room panel. The ODSL 30 variant provides maximum technical compatibility by outputting both analog current and voltage loops simultaneously, while a crisp onboard LC Display and a tactile membrane keyboard allow seamless on-site parameter commissioning and real-time monitoring.

Key Features & Technical Specifications:

Manufacturer: Leuze electronic (Germany)
Product Series: ODSL 30 Series (Ex-protected Optical Distance Sensors)
Model Code: ODSL 30/V-30M Ex d
Device Type: Explosion-Proof Optical Distance Sensor / Laser Displacement Transducer
Scanning Architecture: Direct diffuse reflection against target object surfaces without reflectors.
Special Treatment Variant: Ex-protected design enclosed in an Ex d rated flameproof shell.
Hazardous Area Classification (Ex category): Category 2G (Gas atmospheres) and Category 2D (Dust atmospheres).
Emitter Light Source: Visible Red Laser, producing a precise 6 mm light spot footprint.
Geometric Resolution: 1.0 mm for consistent industrial tracking.
Operational Voltage Margin: 18 ... 30 V, DC.
I/O Interface Layout: Equipped with 1 digital switching input, 1 digital switching output, and 2 high-fidelity analog outputs providing both Current and Voltage loops.
Electrical Connectivity: Pre-assembled heavy-duty 15,000 mm (15-meter) industrial cable with an 8-wire matrix configuration.
Commissioning Interfaces: Integrated clear LC Display coupled with a ruggedized membrane keyboard layout for localized diagnostic checks.
Country of Origin: 100% Made in Germany.
