ONICON F-1100-10-D4-1221

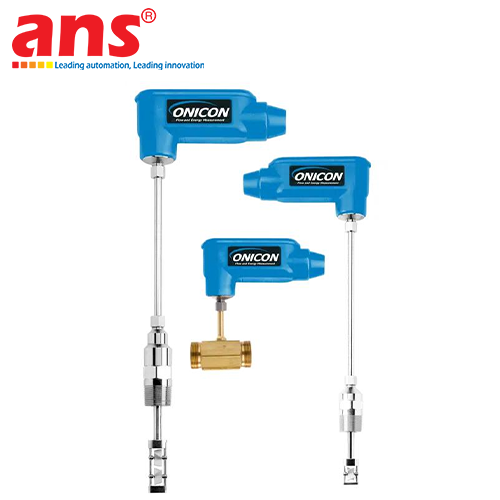

Introduction: The ONICON F-1100-10-D4-1221 Insertion Turbine Flow Meter is a specialized high-performance fluid diagnostics instrument belonging to the world-renowned F-1000 Series portfolio, engineered and manufactured 100% in the United States (USA Origin) by ONICON Incorporated. Unlike traditional inline instrumentation, the ONICON insertion technology empowers technicians to commission the meter through a compact insertion point without necessitating costly pipeline cut-outs or operational shutdowns. This capability provides an agile, cost-effective metering solution for industrial line diameters spanning from 1.25 inches to a massive 72 inches.

Model F-1100-10-D4-1221 incorporates ONICON's proprietary electronic turbine sensor, which delivers highly sensitive response and exceptional tracking consistency across an expansive flow velocity range, from 0.05 to 9 m/s (0.17 – 30 ft/s). Every unit is dispatched with an official NIST Traceable Calibration Certificate, guaranteeing an elite calibration error threshold of ±0.5% and total operational accuracy ranging between ±1% and ±2%. Built to withstand punishing shop-floor environments, the transmitter assembly is housed within an industrial NEMA 4 protective shell and includes a 10 ft PVC cable loom. It natively outputs multi-mode signals including frequency, analog, and scaled pulse loops to ensure flawless, zero-latency integration into supervisory PLC or BMS telemetry grids.

⚠️ CRITICAL TECHNICAL INSTALLATION & PROTOCOL PROMPT:

Sensor Alignment Layout: As an insertion-style instrument, the sensor insertion depth and alignment to the pipe's center-line vector are critical. Improper depth alignment will skew the velocity tracking profile, negatively impacting measurement fidelity.
Straight Pipe Run Adherence: To maintain the ±0.5% factory-certified calibration accuracy, the installation point must avoid downstream turbulence from valves or bends. Always prioritize straight pipe runs compliant with ONICON's recommended standard distances to guarantee the most laminar fluid velocity flow profile possible.

Key Features & Technical Specifications:

Manufacturer: ONICON Incorporated (United States)
Product Series: F-1000 Series Insertion Turbine Flow Meters Portfolio
Full Manufacturing Model Code: F-1100-10-D4-1221
Measurement Principle: Proprietary Electronic Turbine Sensor – High-sensitivity tracking with rapid mechanical feedback.
System Accuracy Standard: Calibrated accuracy threshold of ±0.5%; total operational accuracy ranging from ±1% to ±2%.
Pipe Diameter Range: Versatile structural coverage for pipeline diameters ranging from 1.25 inches to 72 inches.
Fluid Velocity Envelope: 0.17 – 30 ft/s (0.05 – 9 m/s).
Signal Output Interface Array: Supports multi-mode signal outputs including Frequency, Analog loops, and Scaled Pulse logic.
Driving Utility Power: 24 VAC / VDC nominal industrial electrical input tolerance.
Environmental Ingress Hardening: NEMA 4 rated enclosure (dust-tight, water-tight, and resistant to heavy splash/spray environments).
Calibration Verification Metric: Bundled with an official NIST Traceable Calibration Certificate.
Mechanical Mounting Layout: Insertion (mounts via a standard insertion port or hot-tap valve mechanism directly into the pipeline wall).
Country of Origin: 100% Made in the United States.
