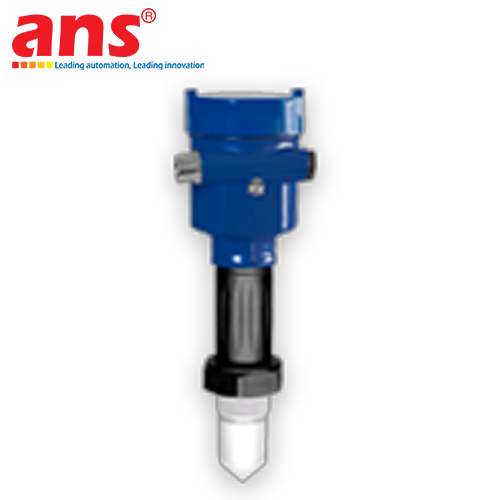

Flowline LR10 80GHz Compact Radar Level Transmitter
Price: Contact
Brand: Flowline
Category: Thiết bị đo lường & Kiểm tra
Supplier: AnhNghiSon
Origin: USA
0911472255The Flowline LR10 80GHz Compact Radar Level Transmitter is a premium, cost-effective non-contact continuous liquid level transmitter engineered by Flowline (USA) for small-to-medium storage tanks, day tanks, wastewater sumps, lift stations, and open channels. Designed to replace traditional ultrasonic level sensors, the LR10 utilizes high-frequency 80GHz FMCW radar technology to emit a focused short-wavelength signal that effortlessly penetrates steam, condensation, vapor, temperature fluctuations, and light surface foam to deliver accurate, highly repeatable level readings.
The Flowline LR10 features a narrow 8-degree beam angle that concentrates radar signal energy directly onto the liquid surface, significantly reducing false echo reflections caused by narrow tank walls, internal piping, or structural obstructions. Encapsulated in a rugged, fully submersible PVDF housing (IP68 / NEMA 6P), the wetted antenna structure provides outstanding chemical resistance against corrosive acids, caustics, solvents, and industrial effluents.
Equipped with a standard 2-wire 4-20mA loop-powered output, the LR10 integrates wireless Bluetooth connectivity for effortless setup and field diagnostics. Maintenance engineers can configure measurement ranges, adjust damping times, and review live echo diagnostic curves using the intuitive Flowline WebCal app on iOS or Android devices. Featuring a compact footprint, pre-molded submersible cable, and 1-1/2" NPT/G process connection, the Flowline LR10 provides an exceptionally reliable and easy-to-install level measurement solution for water, wastewater, chemical, and industrial automation applications.
• Manufacturer: FLOWLINE (USA)
• Model: LR10
• Product Type: Non-Contact 80GHz Compact Radar Level Transmitter for Liquids
• Measuring Range: Up to 10 m (32.8 ft)
• Operating Frequency: 80 GHz FMCW Radar
• Accuracy: ± 2 mm (± 0.08 in)
• Beam Angle: 8° (Narrow beam for false-echo immunity in small vessels)
• Signal Output: 4-20 mA (Loop-powered 2-wire)
• Configuration & Setup: Bluetooth wireless setup via Flowline WebCal App (iOS / Android)
• Local Display: Real-time graphical diagnostic monitoring via Mobile App
• Wetted Materials: Fully encapsulated PVDF (High chemical corrosion resistance)
• Enclosure Material: UV and chemical-resistant PVDF / PBT plastic
• Process Pressure: -1 to 3 bar (-14.5 to 43.5 PSI)
• Process Temperature: -40°C to 80°C (-40°F to 176°F)
• Process Connection: 1-1/2" NPT or G 1-1/2" thread
• Ingress Protection: IP68 / NEMA 6P (Fully submersible encapsulated construction)
• Cable Length: 10 m (32.8 ft) pre-molded submersible cable
• Supply Voltage: 12 - 30 VDC (2-wire loop-powered)
• Quality Compliance: CE, RoHS, ISO 9001
• Standard Accessories: User manual, Factory calibration certificate.
