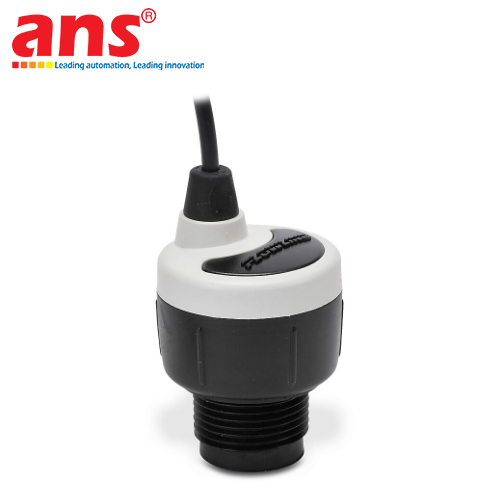

Flowline EchoSpan DL10 Intrinsically Safe Ultrasonic Level Transmitter
Price: Contact
Brand: Flowline
Category: Thiết bị đo lường & Kiểm tra
Supplier: AnhNghiSon
Origin: USA
0911472255The Flowline EchoSpan® DL10 Intrinsically Safe Ultrasonic Liquid Level Transmitter provides continuous non-contact level measurement for hazardous liquid applications requiring explosion-proof safety compliance. Certified Class I, Division 1 (Groups A, B, C, D) and ATEX/IECEx Zone 0, the DL10 is engineered for ultimate operational safety in volatile environments containing flammable solvents, fuels, vaporous chemicals, or hazardous gases.
With a measurement range up to 1.25 meters (4.1 feet) and an extremely short 5 cm (2 inches) deadband, the EchoSpan DL10 maximizes usable filling capacity in small tanks, day tanks, and IBC totes. Built for harsh chemical exposure, the sensor features a rugged Polypropylene (PP) enclosure paired with a corrosion-resistant PVDF (Polyvinylidene Fluoride) transducer and Viton® seal. It provides a 2-wire 4-20 mA analog output loop designed to connect directly through an intrinsic safety barrier to PLC system controllers or remote displays. Configuration, range calibration, and diagnostics are easily managed via Flowline's free WebCal® software interface using a USB Fob adapter.
• Manufacturer: Flowline (USA)
• Product Series: EchoSpan® DL10 Series (Intrinsically Safe)
• Measurement Technology: Non-contact Ultrasonic
• Measurement Range: 2" to 4.1 feet (5 cm to 1.25 m)
• Accuracy: ± 3 mm (0.125")
• Resolution: 0.5 mm (0.019")
• Dead Band: 2" (5 cm)
• Beam Width: 2" (5 cm)
• Signal Output: 4-20 mA, two-wire (Loop-powered, 24 VDC)
• Fail-safe Diagnostics: Selectable 4 mA, 20 mA, 21 mA, 22 mA, or Hold last
• Loop Voltage: 12 - 32 VDC
• Loop Resistance: 560 Ohms @ 24 VDC
• Temperature Compensation: Automatic
• Hardware Construction & Materials:
- Sensor Housing Material: Polypropylene (PP)
- Transducer Material: Polyvinylidene Fluoride (PVDF)
- Sealing Gasket: Viton®
- Cable Jacket Material: Shielded Polyurethane (PUR), 48" (1.2m) length
• Enclosure Rating: Type 6P / IP68 (Fully submersible)
• Process Mount: 1" NPT (-0001 models) or 1" G (-0011 models)
• Process Temperature Range: -4°F to 140°F (-20°C to 60°C)
• Ambient Temperature Range: -40°F to 140°F (-40°C to 60°C)
• Working Pressure Range: 30 psi (2 bar) maximum
• Configuration Utility: Free WebCal® PC Software via LI99-2001 USB Fob adapter
• Safety Approvals:
- Class I, Division 1, Groups A, B, C, D (Intrinsically Safe)
- ATEX / IECEx: Ex ia IIC T4 Ga
• Certifications & Approvals: CE, RoHS compliant
