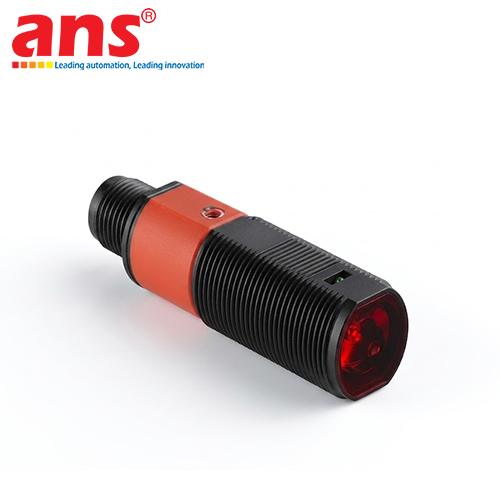

LEUZE LS318B/9D THROUGH-BEAM PHOTOELECTRIC SENSOR TRANSMITTER

DEEP PRODUCT OVERVIEW & OPTICAL ALIGNMENT
The Leuze LS318B/9D is a premium industrial through-beam photoelectric sensing component belonging to the renowned 318B Series line developed by the global automation pioneer Leuze electronic (Germany). This advanced device functions exclusively as the light emitter (Transmitter - TX) within a through-beam photoelectric sensor system. Moving far away from traditional diffuse or retro-reflective sensors that encapsulate both the transmitting and receiving optical paths within a single body shell, a through-beam array separates the optical loop into two independent hardware units aligned directly opposite each other. The LS318B/9D transmitter continuously projects a highly stable, high-intensity light beam across the physical field, while a corresponding matching receiver unit (such as the Leuze LE318B line) captures the beam and handles digital switching output execution. This physical separation provides massive deployment advantages: it fully eliminates tracking errors caused by target object color profiles, glossy surface reflections, or uneven substrate textures. The LS318B/9D stands as the premier automation choice for safety barrier access loops, wide-area logistics sorting conveyor tracks, and heavy-duty processing infrastructure plagued by intense fine dust or material debris.

DIRECT THROUGH-BEAM ADVANTAGES & EXTENDED DUST/SMOKE IMMUNITY
The sensor system runs its inspection sequences based on a direct through-beam principle. Because the LS318B/9D transmitter's sole task is to emit a visible 620 nm red LED beam in a high-frequency pulsed light pattern straight into the opposing receiver lens, without relying on returning rays or material remission, the optical signal attenuation is kept to a micro-minimal level. This engineering blueprint yields a highly concentrated, powerful optical penetration rating. On harsh manufacturing shop floors such as cement plants, tile pressing cells, and heavy lumber mills, a thin layer of fine dust settling on the lens window or the presence of ambient smoke or light mist will not degrade the beam amplitude enough to trigger false outputs or cause system failure—a persistent issue plaguing standard retro-reflective or diffuse options. This ensures steady, drift-free processing across production shifts.

BREAKTHROUGH INTEGRATED INTEGRATED DEACTIVATION INPUT TECHNOLOGY (/9D)
The primary technical asset and core competitive differentiator of the LS318B/9D model is indicated by its "/9D" optical configuration suffix. The hardware is hardwired with a specialized digital input channel designated as the Deactivation Input. This advanced feature empowers the master central PLC to transmit an instantaneous software-driven command to "Shut Off" the emitted red beam path at will, even while the device remains continuously energized under standard 10-30 VDC supply current rails.
Real-World Automation Benefits: This loop is engineered specifically to drive automated diagnostic routines (Auto-test loops). The PLC can programmatically toggle the transmitter off during brief manufacturing intervals; if the opposite receiver instantly switches its digital logic output to OFF, the controller authenticates that the complete optical path is fully operational and uncompromised. This removes the need for field operators to physically enter high-risk machinery cells to place a manual obstruction block in front of the lens, maximizing plant safety indices and slashing system check down-times.

STANDARD M18 CYLINDRICAL HARDWARE & EXTENDED TEMPERATURE RESISTANCE
- Standard Metric M18 Threaded Barrel Footprint (M18 × 1 mm): Molded from high-strength ABS engineering plastic alloy, the housing exhibits outstanding physical shock absorption, resistance to structural cracking under high tightening torque, and complete immunity against machine frame vibrations. Sporting a minimalist total casing length of 46 mm and a fully threaded M18 body, the hardware serves as a seamless drop-in installation tool: technicians can pass the barrel straight through standard bracket gá gá mounting ports and secure it tightly with the dual locking nuts within seconds. The visible red beam spot facilitates effortless axis alignment over a guaranteed working path of 0-10 meters, stretching up to a typical limit of 15 meters under optimal atmospheric conditions.
- Heavy-Duty IP67 Ingress Protection Seal: Completely dust-tight and fully shielded against fluid ingress under routine line sanitation washdowns or temporary water submersion. Combined with an extended operational thermal tolerance stretching from deep freezing settings at -40°C up to high-ambient conditions of +60°C, the Leuze LS318B/9D performs flawlessly in extreme industrial climates. (Note: Depending on the specific ordering part number configuration, this model is supplied with either a factory-molded 2-meter high-flexibility cable or an industrial standard M12 4-pin quick disconnect plug interface, such as the LS318B/9D-M12 variant).

OPTICAL DATA & EMITTER PERFORMANCE
- Device Classification: Transmitter (TX) of a through-beam photoelectric sensor system
- Product Series: 318B Series Lineup
- Operating Optical Principle: Direct Through-beam configuration
- Emitted Light Source: LED, visible red beam profile
- Optical Light Wavelength: 620 nm
- Optical Modulator Pattern: Pulsed Light (Ensures superior ambient lighting noise suppression)
- Guaranteed Operating Range: 0 meters to 10 meters
- Maximum Typical Sensing Range Limit: Up to 15 meters (Evaluated under clean, unobstructed atmospheric conditions)

ELECTRICAL SPECIFICATIONS & SPECIAL FUNCTIONS
- Operating Supply Voltage (UB): 10 ... 30 V DC (Includes integrated reverse polarity power rail protection)
- On-Board Circuit Protections: Reverse polarity protection, output short-circuit protection.
- Control Command Interface (Suffix /9D): Integrated Deactivation Input (Enables remote beam shutoff via PLC loop for automated diagnostic system checks)
- Output Configuration: No switching outputs present (Control output logic resides exclusively on the matching Receiver unit)

CONNECTION INTERFACE & WIRING DETAILS
- Electrical Connection Type: Pre-molded factory-sealed cable, 2-meter standard length (Or optional integrated M12 standard quick disconnect male plug with 4-pin layout and A-coded mechanical alignment, depending on the exact model ordering number like the LS318B/9D-M12).
- Cable Core Properties: 4-core high-conductivity flexible wire cores maximizing tensile endurance against continuous torsional stress.

MECHANICAL PROPERTIES & MATERIAL COMPOSITION
- Physical Enclosure Style: Cylindrical threaded barrel body (Cylindrical M18)
- Metric Thread Specification: M18 × 1 mm (18 mm outer diameter × 46 mm total housing length)
- Structural Housing Material: Heavy-duty industrial grade ABS engineering plastic polymer
- Optical Window Lens Material: High-transmittance technical grade Plastic polymer
- Fixing Assembly Method: Passed straight through gá đặt fixing brackets and rigidly secured via dual structural locking nuts.

ENVIRONMENTAL RATINGS & COMPLIANCE
- Ingress Protection Rating: IP67 (Completely dust-tight and resilient against temporary fluid immersion during line cleanings)
- Ambient Operating Temperature Spectrum: -40°C to +60°C
- Ambient Storage Temperature Spectrum: -40°C to +70°C
- Quality & System Standards Safety: cULus certified, fully aligned under rigid global international IEC 60947-5-2 guidelines for industrial photoelectric sensing instruments.
