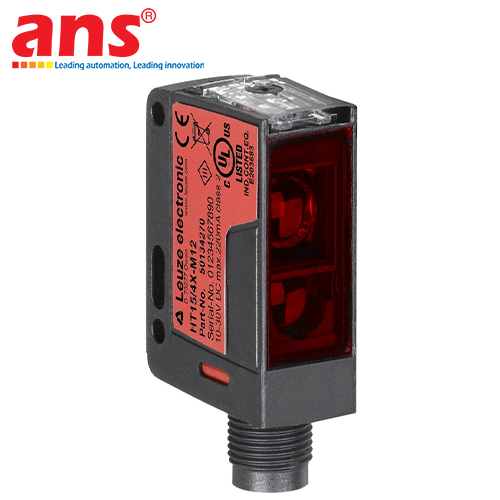

Leuze HT15/4X-M12 (Order Code: 50134346)

Product Overview: The Leuze HT15/4X-M12 diffuse reflection photoelectric sensor with integrated background suppression is a premium ultra-compact object diagnostics instrument belonging to the world-renowned Series 15 portfolio, engineered and manufactured by Leuze in Germany. Within high-tier industrial automation networks, high-velocity machine tool setups, space-restrictive automated packaging units, and intricate robotic gripper modules, executing reliable target telemetry without experiencing interference from background layouts demands a highly stripped-down physical footprint that retains absolute accuracy metrics. The HT15/4X-M12 variation profiles a completely hardened mechanical structure utilizing an ultra-lightweight industrial ABS structure weighing a trace 15 grams, preserving absolute signal fidelity and ensuring continuous 24/7 automation runtimes without error logs.

Intelligent Background Suppression (BGS) Dynamic Topology: The underlying technological paradigm driving the HT15/4X-M12 variant leverages sophisticated Background Suppression (BGS) physics. Unlike standard diffuse reflection sensors that are easily compromised when background structures (such as concrete warehouse walls, steel machinery frames, or dark rubber conveyor belts) display high reflective properties, the BGS engine relies on precise optical triangulation principles. The hardware projects a focused visible Red LED beam with a 640 nm wavelength onto the target medium.

The internal receiver lens array continuous captures the returned wave vectors, calculating the exact interception angle to compute target proximity with high data resolution. Consequently, the sensor triggers its output matrix exclusively when a target enters the predetermined nominal tracking window, systematically ignoring all background obstructions or automated movements sitting outside the configured zone.

Real-World Scenario: If the calibrated tracking boundary is set to 1000 mm, a shipping container gliding along a belt at a distance of 600 mm will immediately trigger precise detection; simultaneously, a structural building wall or a moving mechanical arm located 2 meters away is completely filtered out by the tracking algorithm, eliminating false signal errors.

Optical Fidelity and Color Independent Tracking: A defining engineering asset of the HT15 model family is its exceptional capability to minimize distance migration across diverse object colors and surface finishes, exhibiting a black-to-white distance drift shift variation of less than 15% up to a 350 mm boundary. The guaranteed operational tracking window for a standard White target (90% reflectivity) tracks smoothly from 12 mm to 1 meter; a standard Gray target (18% reflectivity) tracks from 12 mm to 0.7 meters; and an intensive carbon Black target (exhibiting a trace 6% reflectivity) is flawlessly resolved across a 12 to 500 mm envelope.

The typical absolute maximum tracking boundary reaches smoothly from 12 mm up to 1 meter. This performance proves the premium capability of Leuze optical lenses to reject material color variables, enabling processing grids to run seamlessly without needing hardware re-calibration when switching production batches from light-toned packages to dark-toned containers.

🛠️ FIELD INSTALLATION PROMPT & METRIC CONFIGURATION:

• High-Precision Multiturn Potentiometer Calibration: The transmitter body incorporates an integrated adjustment knob driven by a Multiturn Potentiometer architecture, covering a programmable boundary span from 50 mm to 1000 mm. This multi-rotation mechanical configuration empowers field automation crews to execute baseline distance calibration with high resolution, locking onto tight millimeter tolerances. This layout replaces single-turn variable resistors prone to drift, keeping the configured boundary stable against heavy industrial vibration forces generated by high-power conveyor motor drives.

• High-Speed Solid-State Output Channel: Features a real-time data loop via an independent solid-state channel: PNP Transistor operating on Light Switching (Light ON / Energizes current loop on object capture) mode. This setup sends instantaneous discrete telemetry directly to central PLC nodes or automated supervisory platforms with an ultra-fast response speed of precisely 1 ms (matching an electronic switching pulse frequency of 500 Hz), preventing missed counts or totalization dropouts on high-speed product flows.

Severe-Duty Environmental Hardening Specifications: Despite its compact mechanical block dimensions showing a width of 15 mm, a height of 42.7 mm, and a length of 30 mm, the sensor shell is cast entirely from premium high-density industrial ABS polymer resin paired with a scratch-resistant plastic optical lens assembly.

Certified to international IP67 protective ingress ratings, the housing yields a dust-tight barrier impervious to heavy water sprays or ambient plant dampness. The internal solid-state circuitry is reinforced with premium heavy-duty protection mechanisms: native reverse polarity power isolation and output short-circuit barrier containment. The hardware operates with absolute stability over an extended thermal window scaling from minus 40 up to plus 60 degrees Celsius, making it suitable for cold-storage food facilities or adjacent high-heat furnace systems. Electrical interface routing utilizes a standard A-coded, M12, 4-pin male socket link, flanked by 2 integrated high-visibility LED status blocks providing clear real-time diagnostics for input power validation and output state verification.
