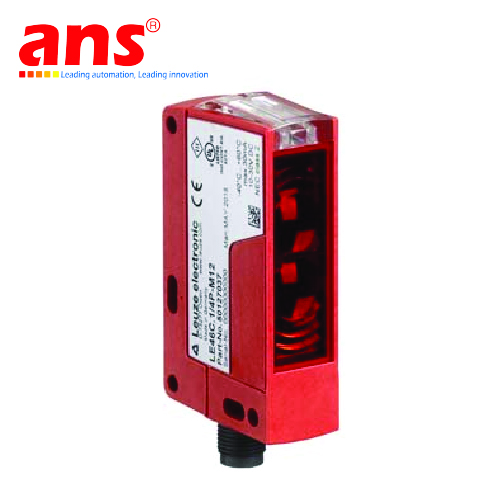

HT46CI/4P-M12 Diffuse sensor Leuze Vietnam
.jpg)
The switching sensor with measurement value output has two independent switching points and is very versatile: In intralogistics, it can be integrated in shuttles for different applications and thus ensures reliable positioning, presence testing and compartment occupation checks. In the case of AGVs (automated guided vehicles), the diffuse sensor monitors e.g. the position of the transport material. Compact diffuse sensors with high operating ranges are also used in automobile production, e.g. to control robot grippers or for quality control.
The 3C series includes compact photoelectric sensors and diffuse sensors with high operating ranges and large function reserves. With the new ODT3CL1-2M laser diffuse sensor we have extended the operating range of our distance sensors. The ODT 3C diffuse sensor with triangulation principle, already included in the 3C series, achieves operating ranges up to 150 mm and is suitable for packaging processes, for example.
Advantages for you
- 2-in-1 sensor: The detection and output of measurement values using just one sensor saves time and money during procurement, installation, commissioning and operation
- TOF technology: High operating range up to 2 meters makes applications over large distances possible
- Small, visible light spot thanks to laser light source
- Compact housing: Use in applications with limited installation space
- Integrated object test: Mode with brightly flashing light spot to check the function reserve
- Degree of protection IP69K: Allows use in harsh conditions
- Output of process data via IO-Link: Extensive diagnostic data from the device, e.g. temperature value, signal quality and warning
