Coating thickness gauge QuintSonic T Elektrophysik Vietnam
Price: Contact
Brand: Elektrophysik Vietnam
Category: Thiết bị đo lường & Kiểm tra
Supplier: ansvietnam
Origin: Germany
0911472255Coating thickness gauge QuintSonic T Elektrophysik Vietnam

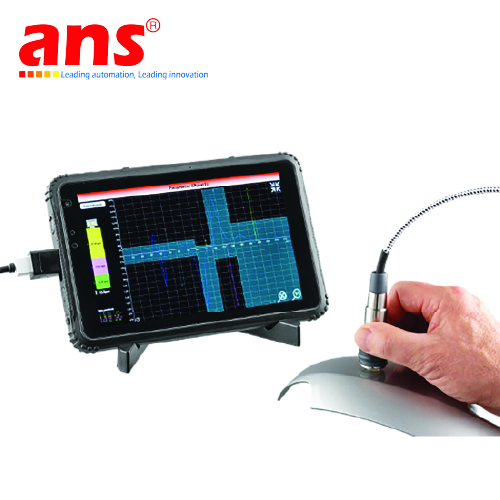

The upgrade of the well proven QuintSonic coating thickness gauge combines measuring system and evaluation software in an ultrasonic sensor directly connected to an industrial tablet. QuintSonic T measures the individual thickness of up to 8 layers on different substrates (e.g. metal, plastics, GFRP, CRFP, WPC, fibre reinforced composites) using the ultrasonic run-time method. Measurement of all layers is performed in only one operation.
QuintSonic T: All measuring parameters on one screen
QuintSonic T measures of up to eight coatings in a single operation.
It can measure polymer coatings such as paints, varnishes and synthetic material, as well as glass, ceramic or metallic coatings on virtually any substrate.
Precise and easy to handle, QuintSonic T can measure all typical coating systems such as:
- Lacquers on synthetic material
- Synthetic material on wood
- Glass on metal
- and many more.
Featuring a generous 8-inch display, QuintSonic offers a user-friendly overview of the result of measurement as well as the corresponding course of the ultrasonic signal (A-scan). Parameters for signal adjustment are displayed simultaneously and can thus bie adapted to the current measurement with significant time savings. Subsequient adjustment of parameters is also possible through the new memory option for A-scans.
In addition, QuintSonic T is characterized by simple handling via touch screen and intuitive user guidance. The measuring program also offers a clear data structure with integrated test report generation.
