0911472255

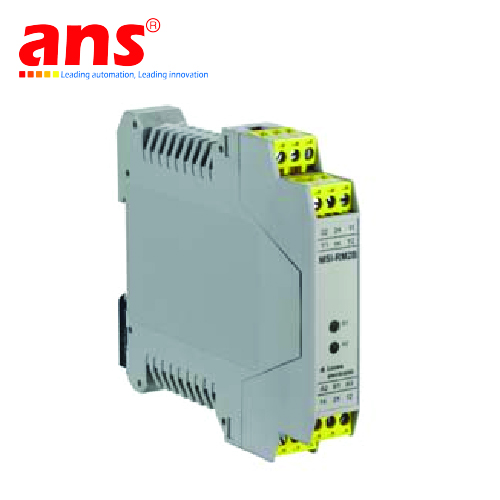

Safety relay MSI-RM2B-01 Leuze Vietnam
Basic Data
- Series MSI-RM2B
- Application Signal conversion of electronic safety outputs on potential-free relay contacts
Optical Data
- SIL 3, IEC 61508
- SILCL 3, IEC/EN 62061
- Performance Level (PL) e, EN ISO 13849-1
- Mission time 20 years, EN ISO 13849-1
- Category Up to 4 (depending on the category of the upstream protective device), EN ISO 13849-1
- B10d at DC1 (ohmic load) 10,000,000 number of cycles, (2 A, 24 V)
- B10d at AC1 (ohmic load) 1,300,000 number of cycles, (0.5 A, 230 V)
- B10d at DC13 (inductive load) 10,000,000 number of cycles, (2 A, 24 V)
- B10d at AC15 (inductive load) 1,300,000 number of cycles, (0.5 A, 230 V)
- B10d, low load 1,860,000 number of cycles
