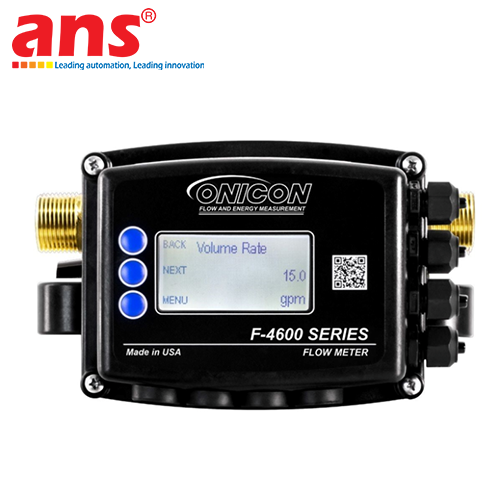

ONICON FT-4600-010-000-09

Product Overview:

The ONICON FT-4600-010-000-09 Inline Ultrasonic Flow Meter is a premium high-tier industrial fluid diagnostics instrument belonging to the world-renowned FT-4600 Series portfolio, engineered and manufactured 100% in the United States (USA Origin) by ONICON Incorporated. Within modern mechanical frameworks of large commercial smart complexes, hyper-scale Data Centers, and light industrial processing mills, capturing absolute fluid flow data loops is the baseline requirement for optimizing energy performance matrices. Unlike traditional mechanical turbine meters vulnerable to frictional deterioration and calibration drift, the FT-4600-010-000-09 variation utilizes a completely static non-intrusive soundwave detection method, providing an uncompromised solid-state run status that sustains long-term measurement fidelity over decades while eradicating periodic field maintenance costs.

The underlying technological paradigm driving the FT-4600-010-000-09 variant leverages advanced Ultrasonic Transit-Time Fluid Dynamics. The instrument positions high-frequency acoustic transducers opposite each other within the inline measuring tube channel. By projecting alternating ultrasonic signal bursts upstream and downstream relative to the flow vector, the onboard digital processing engine calculates the microscopic differential transit time ($\Delta t$) of the acoustic waves. This continuous temporal delta resolves active fluid velocities with exceptional data resolution. Because the inner flow aperture is completely smooth and unobstructed, the meter imposes absolutely zero physical interference onto the process medium, preserving host pipeline pressure balances, decreasing utility pumping workloads, and eliminating clog risks from suspended scale, metallic particulates, or loose debris.

💎 ELITE METALLURGY & INDUSTRIAL HARDWARE CONFIGURATION:

Lead-Free Brass Metallurgy: The flow tube body is forged entirely from high-grade industrial lead-free brass alloy. This material selection secures absolute immunity against aggressive chemical breakdown from automated closed-loop chilled water additives and anti-freezing glycol agents, while simultaneously meeting strict global non-toxic mandates required for potable domestic water networks.
Spectacular 500:1 Turndown Capabilities: The system demonstrates a remarkable overall operating range ratio of 500:1, coupled with an audited system accuracy of $\pm1\%$ of reading across a 25:1 active turndown window. This high-resolution dynamic capability guarantees the meter tracks minimal overnight pipe leakage currents or off-peak hydronic heating loads, yet seamlessly handles high-velocity summer peak demands without data clipping.
Comprehensive Control Interlocking Layout: Out of the box, the device configuration supplies synchronized dual telemetry pathways, featuring a linear analog 4-20mA loop alongside a high-fidelity Scaled Pulse Output. For sophisticated smart network integration, the unit seamlessly accepts field-upgradable optional interface daughterboards to route tracking data straight via industrial BACnet MS/TP or Modbus RTU serial networks directly back to centralized BMS or master SCADA arrays.

Environmental Hardening Metrics:

To protect delicate calculation microchips from harsh atmospheric conditions, the transmitter housing is fully armored to NEMA 4 ingress specifications (matching strict IP66 standards), yielding a dust-tight barrier impervious to heavy ambient condensation or high-pressure external water spray during field washdowns. The device flawlessly manages fluid processes scaling from 0°F up to 250°F (-18°C to 121°C) while managing high-pressure mechanical lines up to an intensive limit of 400 psi, allowing compact inline installation (threaded NPT or flanged arrangements spanning nominal sizes from ½" to 2½") inside restrictive facility pipe chases.

Key Features & Detailed Technical Specifications:

Manufacturer: ONICON Incorporated (United States)
Product Series: FT-4600 Series Inline Ultrasonic Fluid Instrumentation Portfolio
Full Manufacturing Model Designation: FT-4600-010-000-09
Measurement Principle: Non-intrusive Ultrasonic Differential Transit-Time.
Mechanical Integration Footprint: Inline installation (spliced directly in-line via standardized mechanical NPT threaded or flanged joints).
Nominal Pipe Size Range: Broad modular structural coverage optimizing sizes from ½" to 2½".
System Accuracy Standard: $\pm1\%$ of active reading across specified process flows (optimized over a 25:1 operating window).
Measurement Repeatability Metric: Extremely stable tracking consistency locked at $\le \pm0.2\%$.
Overall Dynamic Range (Turndown): 500:1 operational capability ensuring reliable capturing of trace low-flow velocities.
Driving Utility Power: 20–28 VAC/DC nominal input tolerance, running across dual AC/DC power infrastructure.
Signal Output Interface Array: * Analog Channel: 1 x 4-20mA loop (proportional to instantaneous flow speed).
- Discrete Channel: 1 x Scaled Pulse Output (optimized for flow totalizer tracking).
Fieldbus Communication Automation Options: Accommodates optional integrated BACnet MS/TP or Modbus RTU network protocols via matching card modules.
Maximum Line Pressure Rating: 400 psi structural pressure envelope.
Process Temperature Boundaries: Handles fluid media thermal windows spanning 0°F to 250°F (-18°C to 121°C).
Structural Material Hardening: Heavy-walled Lead-Free Brass flow body framework.
Enclosure Environmental Rating: Certified to NEMA 4 protective standards (dust-proof and water-spray immune specification).
Field Maintenance Requirement: Zero maintenance overhead due to a solid-state design containing absolutely no moving mechanical components.
Country of Origin: 100% Made in the United States.
