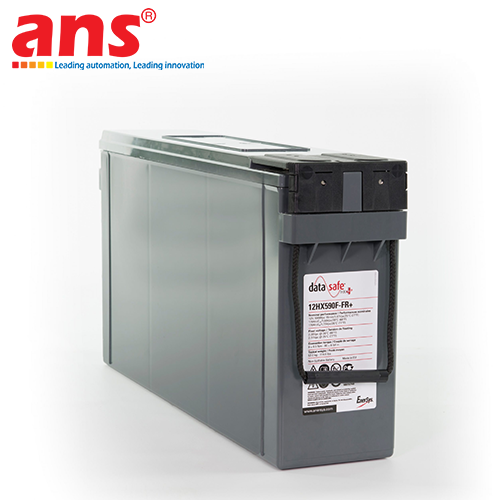

EnerSys DataSafe 12HX590F-FR+ (12V, 590Wpc)

Introduction: The EnerSys DataSafe 12HX590F-FR+ Industrial High-Rate Standby Battery is a premium critical-tier energy storage block engineered and manufactured 100% across certified EnerSys global manufacturing hubs in France or the United Kingdom (France/UK). Designed specifically for intense short-duration power distribution loops within large-scale UPS arrays, the DataSafe HX family represents the gold standard for safeguarding server mainframe clusters and protecting digital enterprise transactions during localized grid failures.

The architectural foundation of the 12HX590F-FR+ variant incorporates advanced heavy-duty engineering parameters:

High-Rate Power Density (590Wpc): Delivers an impressive 590 Watts per cell (Wpc) on a 15-minute runtime schedule to 1.67Vpc, optimizing the real estate footprint within battery rooms.
Front Terminal Layout ("F"): Front-facing connection terminals drastically streamline serial bus-bar linking and slide-in cabinet positioning inside standard 19-inch or 23-inch power racks, reducing operational maintenance window duration by up to 20%.
Flame Retardant Housing Matrix ("FR+"): The casing material is formed from rugged, high-impact ABS plastic meeting the strict UL94 V-0 self-extinguishing safety index, guaranteeing elite fire containment protocols inside sensitive data center environments.

⚠️ CRITICAL FREIGHT HANDLING & LOGISTICS NOTICE (DANGEROUS GOODS): This heavy-duty standby power block is strictly classified and regulated under DANGEROUS GOODS protocols (Class 8 - Corrosive Material / UN2800) due to its concentrated chemical electrolyte composition and internal lead plate layout.

All warehouse layout allocations, mechanical lifting, and transit transport networks must fully comply with localized and international Material Safety Data Sheet (MSDS) standards.
Please coordinate with the dedicated logistics coordinators at EnerSys Vietnam to verify proper vehicle safety placards and manifest clearances prior to final collection.

Key Features & Technical Specifications:

Manufacturer: EnerSys (France / USA / UK)
Product Series: DataSafe HX Front Terminal High Rate Family
Full Manufacturing Designation: DataSafe 12HX590F-FR+
Nominal Unit Voltage: 12V
Rated Performance Density: 590 Watts per cell (Wpc) at a 15-minute rate threshold evaluated to 1.67Vpc at 25°C.
Chemical Architecture: Valve Regulated Lead Acid (VRLA) design coupled with highly absorbent Absorbent Glass Mat (AGM) separators, securing 99% internal gas recombination to eliminate periodic water replenishment overheads.
Enclosure Specifications: High-impact, flame-retardant ABS protective shell rated to UL94 V-0 (FR+ configuration), incorporating specialized low-pressure one-way safety relief valves with internal flame arrestors.
Terminal Interface: Heavy-duty, front-access female copper threaded inserts optimized for superior electrical conductivity and enhanced torque resistance.
Country of Origin: 100% Made in France / United Kingdom (100% France / UK Origin).
