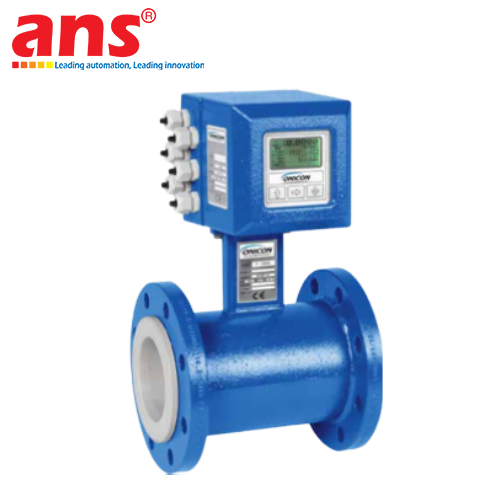

ONICON T-3220-13111-2121

Introduction: The ONICON T-3220-13111-2121 Inline Electromagnetic Flow Meter is a premium process-grade fluid diagnostics instrument belonging to the high-efficiency FT-3000 Series portfolio, engineered and manufactured 100% in the United States (USA Origin) by ONICON Incorporated. Utilizing Faraday's Law of Electromagnetic Induction to determine deterministic fluid velocities, this sophisticated meter features a completely unobstructed internal flow path that contains absolutely no moving mechanical parts. This non-intrusive layout completely bypasses pipeline pressure drop overheads, eliminates the risk of particulate clogging or debris accumulation, and ensures continuous plant operation with minimal long-term maintenance costs.

The defining operational benefit of the T-3220-13111-2121 variant is its rigorous individual wet-calibration program executed on factory flow loops prior to dispatch. Pre-configured with essential application parameters at the factory, this meter minimizes on-site commissioning adjustments and drastically reduces mechanical installation windows. Delivering an elite system accuracy rating spanning between ±0.2% and ±0.4% of active reading, the device is perfectly optimized to handle diverse utility loops—ranging from commercial chilled water grids and condenser loops to high-temperature boiler feed water baselines. The device comes standard with an integrated flow totalizer and outputs synchronized Analog and Digital telemetry channels, including a high-fidelity Pulse Output for zero-latency communication back to centralized control arrays.

⚠️ CRITICAL TECHNICAL OPERATIONAL PROMPT:

Fluid Media Prerequisites: Because this instrument relies entirely on electromagnetic induction principles, it requires conductive liquids to operate. It is completely incompatible with demineralized/pure distilled water, non-conductive chemical oils, or petroleum-based fluids.
Hydraulic Alignment Profile: To preserve the factory-certified ±0.2% to ±0.4% calibration threshold, the meter must be positioned in a location that guarantees a continuous full-pipe state, supported by standard upstream and downstream straight pipe runs to dissipate fluid swirls or cavitation profiles.

Key Features & Technical Specifications:

Manufacturer: ONICON Incorporated (United States)
Product Series: FT-3000 Series Inline Electromagnetic Flow Meters Portfolio
Full Manufacturing Model Code: T-3220-13111-2121
Measurement Principle: Electromagnetic (Mag-meter technology) – delivers an unobstructed flow profile with zero mechanical friction wear.
System Accuracy Standard: Achieves an elite margin of ±0.2% to ±0.4% of active reading across standard flow velocities.
Calibration Verification Metric: Individually wet-calibrated at the factory to guarantee exceptional out-of-the-box accuracy.
Signal Output Interface: Simultaneous integrated Analog and Digital loops, featuring a built-in discrete Pulse Output channel.
Data Logging Capacities: Outfitted with an onboard, high-reliability flow volume accumulation totalizer module.
Maintenance Requirement: Exceptionally low maintenance overhead due to a static mechanical design resistant to physical scaling.
Mechanical Mounting Layout: Inline integration (spliced directly in-line via standardized flanged or threaded mechanical connections).
Country of Origin: 100% Made in the United States.
