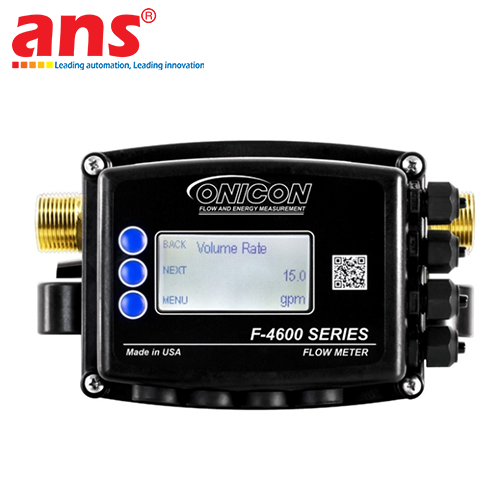

ONICON FT-4600-150-000-09

Product Overview: The ONICON FT-4600-150-000-09 Inline Ultrasonic Flow Meter is a premium process-grade fluid diagnostics instrument belonging to the world-renowned FT-4600 Series portfolio, engineered and manufactured 100% in the United States (USA Origin) by ONICON Incorporated. Within modern mechanical infrastructures of commercial properties, hyper-scale Data Centers, centralized high-output HVAC installations, and intelligent energy management frameworks, executing rigorous, uncompromised flow telemetry along 1½-inch (DN40) pipe branches is foundational to precise automated automation loop control and proactive energy sub-metering. The FT-4600-150-000-09 variation profiles a completely solid-state structural design that eliminates internal mechanical moving components like turbines or rotors, avoiding mechanical wear and friction decay while preserving absolute long-term measurement fidelity over decades of heavy-duty industrial runtimes.

Differential Transit-Time Ultrasonic Fluid Dynamics: The underlying technological paradigm driving the FT-4600-150-000-09 variant leverages sophisticated Differential Transit-Time Ultrasonic physics. The device embeds high-precision acoustic transducers permanently across the internal 1½-inch flow channel path. As the processed media (water or industrial water/glycol solutions) glides through the tube, the system shoots alternating high-frequency acoustic wave pulses upstream and downstream relative to the flow direction vector. The integrated digital telemetry engine analyzes the microscopic time-of-flight delta between these sonic signals to resolve continuous process velocity with exceptional data resolution. Because the inner measuring aperture is completely open, smooth, and unobstructed, it introduces zero physical restriction to the fluid stream, ensuring optimal pipeline pressure retention, decreasing utility pumping workloads on central chiller grids, and preventing particulate clogging from scale, iron oxides, or loose particulate matter.

[Diagram representing ultrasonic transit-time differential fluid calculation topology]

🛠️ CRITICAL FIELD CONTROL & HARDWARE ADVANTAGES:

Isolated Solid-State Pulse Output: Shifting away from legacy mechanical relay switches prone to mechanical degradation and contact wear, this system utilizes high-grade solid-state electronic switching. Tightly synchronized with electrical isolation hardware, it prevents electrical arc hazards, delivers near-infinite cycle runtime longevity, and repels ambient electromagnetic frequency (EMF) noise caused by neighboring high-power pump variable frequency drives (VFDs), ensuring continuous error-free data transfer to the BTU meter totalizer.
Blind Transmitter Architecture: This specialized model functions without a local LCD panel, making it perfectly tailored for crowded overhead piping bays, high-elevation runs, or utility crawlspaces. Eliminating the localized screen scales down the total power requirements to an automated threshold of less than or equal to 5 VA Max, while shielding critical calculating components from external industrial physical shocks.

Hardened Hardware Topology & Electrical Specifications: To protect delicate calculation microchips from harsh atmospheric conditions, the transmitter housing is fully armored to NEMA 4 ingress specifications, yielding a dust-tight barrier impervious to heavy water sprays. The device operates with exceptional efficiency running on a flexible industrial utility range of 20 to 28 VAC/DC. The physical structure effortlessly handles heavy line pressures up to an intensive limit of 400 psi (approximately 27.6 bar) and manages demanding process thermal flows ranging from -18 to 121 degrees Celsius (equivalent to 0 to 250 degrees Fahrenheit). The underlying metal flow tube is forged from premium Lead-Free Brass alloy, meeting global toxic-barrier compliance mandates for potable water circuits.

Manufacturer: ONICON Incorporated (United States)
Product Series: FT-4600 Series Inline Ultrasonic Fluid Instrumentation Portfolio
Full Manufacturing Model Designation: FT-4600-150-000-09
Measurement Principle: Non-intrusive Differential Transit-Time Ultrasonic physics.
Nominal Pipe Dimension: 1½ Inch / DN40.
Mechanical Interface Footprint: Standard Industrial inline mechanical execution.
System Accuracy Standard: Plus or minus 1% of active reading across specified process flows (calculated over a standard 25:1 operating window).
Measurement Repeatability Metric: Extremely stable tracking consistency, less than or equal to plus or minus 0.2%.
Overall Dynamic Range (Turndown Ratio): Massive 500:1 operational capability ensuring reliable capturing of trace low-flow velocities.
Driving Utility Power: 20–28 VAC/DC nominal input tolerance, running across dual AC/DC electrical infrastructure.
Maximum System Power Consumption: Less than or equal to 5 VA Max.
Signal Output Interface Array: * 1 x Analog Channel: Linear 4-20mA loop (proportional to flow speed).
- 1 x Discrete Channel: Isolated Solid-State Pulse Output (optimized for clean totalizer integration).
Process Temperature Boundaries: Handles fluid media thermal windows spanning -18 to 121 degrees Celsius (equivalent to 0 to 250 degrees Fahrenheit).
Maximum Line Pressure Rating: Heavy-duty 400 psi (approximately 27.6 bar) structural pressure envelope.
Structural Material Hardening: Heavy-walled Lead-Free Brass flow body framework.
Enclosure Environmental Rating: Certified to NEMA 4 protective standards.
Calibration Verification Metric: Fully backed by bundled ISO 17025 and NIST Traceable factory certificates.
Country of Origin: 100% Made in the United States.
