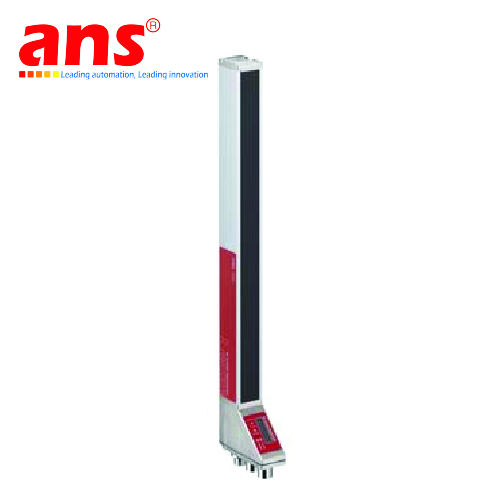

Light curtain receiver CML720i-R10-1760.A/D3-M12 Leuze Vietnam





The Leuze CML720i-R10-1760.A/D3-M12 is a high-performance light curtain receiver designed for precision object detection and profiling across industrial applications. With a scanning height of 1,760 mm, beam spacing of 10 mm, and robust Modbus RTU / IO-Link communication, it provides fast, reliable, and flexible integration into modern automation environments.


🔧 Key Technical Specifications

  • Active field height: 1,760 mm (176 beams, 10 mm spacing)

  • Detection range: 0.3 – 7 m

  • Minimum detectable object: 20 mm

  • Response time: 5.68 ms (30 µs per beam)

  • Supply voltage: 18 – 30 V DC with integrated protection (reverse polarity, overcurrent, surge)

  • Interfaces:

    • RS-485 Modbus for industrial communication

    • IO-Link for easy integration and diagnostics

  • Connectors:

    • M12, 8-pin for power/data

    • M12, 5-pin for BUS IN/BUS OUT

  • Enclosure rating: IP65

  • Display: OLED with capacitive touch control

  • Material: Aluminum housing

  • Operating temperature: -30°C to +60°C

  • Weight: Approx. 1.9 kg

  • Compliance: IEC 60947-5-2, cULus certified

1

100%  Germany Origin

Leuze Vietnam

Code : CML720i-T10-1760.A-M12
Light curtain transmitter, Operating range: 0.3...7m, Measurement field length:
1760mm, 176beams, 10mm beam spacing, LED, Infrared, min. object diameter:
20mm, 18-30VDC, M12 5pin connector, LED display, -30...60°C, IP65, Contains: 2x
BT-NC sliding block

2

100%  Germany Origin

Leuze Vietnam

Code : CML720i-R10-1760.A/PN-M12
Light curtain receiver, Object measurement, Operating range 0.3 ..7m, Measurement
field length 1760mm, 176 beams, 10mm beam spacing, Minimum object diameter 20
mm, PROFINET, axial connectors, -30 ... 60 °C, IP65,IO-Link

3

100%  Germany Origin

Leuze Vietnam

Code : CML720i-R10-1760.A/D3-M12
Light curtain receiver, Object measurement, Operating range 0.3 ..7m, Measurement
field length 1760mm, 176 beams, 10mm beam spacing, Minimum object diameter 20
mm, RS 485 Modbus, axial connectors, -30 ... 60 °C, IP65, IO-Link

4

100%  Germany Origin

Leuze Vietnam

Code : CML720i-R10-1760.A/CV-M12
Light curtain receiver, Object measurement, Operating range 0.3 ..7m, Measurement
field length 1760mm, 176 beams, 10mm beam spacing, Minimum object diameter 20
mm, Analog output, axial connectors, -30 ... 60 °C, IP65,IO-Link
