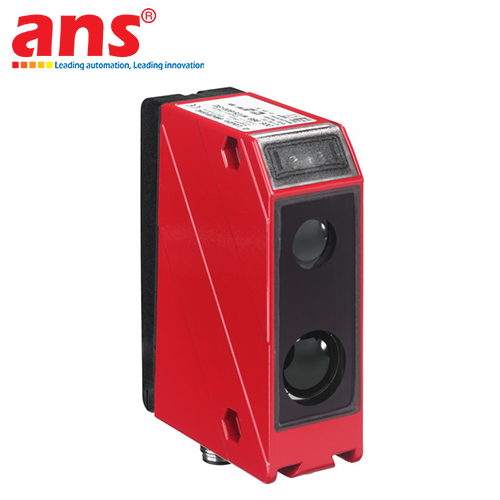

Leuze ODS 96B M/C6-600-S12

Introduction: The Leuze ODS 96B M/C6-600-S12 Optical Distance Sensor is a premium non-contact positioning and displacement instrumentation solution engineered and manufactured 100% in Germany by Leuze electronic. Operating on an advanced diffuse-reflection scanning principle directed straight against the target object, this sensor eliminates the requirement for external retro-reflective reflectors, significantly optimizing onsite mechanical setup footprints and preventing measurement tracking failures caused by plant dust accumulation on mirrors. Utilizing a highly consistent infrared LED light source paired with a standard 15 mm x 15 mm light spot size, the ODS 96B M/C6-600-S12 variant tracks precise distance profiles from 100 to 600 mm. It delivers a sub-millimeter geometric resolution rated at 0.1 to 0.5 mm coupled with an outstanding 1.5% accuracy threshold, feeding smooth, reliable positional data back to automation systems through an industrial analog current output channel. For maximum ease of deployment, field technicians can configure or tune the sensor interface directly via the rugged integrated membrane keyboard or utilize a centralized PC software module for deep parameter alignment.

Key Features & Technical Specifications:

Manufacturer: Leuze electronic (Germany)
Product Series: ODS 96B Series (Optical Distance Sensors)
Model Code: ODS 96B M/C6-600-S12
Device Type: Optical Distance Sensor / Linear Displacement Transducer
Scanning Architecture: Diffuse reflection directly against target object surfaces.
Emitter Light Source: Reliable Infrared (IR) LED.
Light Spot Proportions: 15 mm x 15 mm footprint.
Measurement Span: 100 ... 600 mm operational distance.
Geometric Resolution: 0.1 ... 0.5 mm for high-precision fine tuning.
Measurement Accuracy: 1.5% deviations maximum.
Operational Voltage Margin: 18 ... 30 V, DC.
I/O Interface Layout: Equipped with 1 digital switching input, 1 digital switching output, and 1 high-fidelity analog current loop output.
Electrical Connectivity: Standard rugged M12 connector, 5-pin configuration matrix.
Commissioning Interfaces: On-board membrane keyboard layout or remote execution via dedicated PC software utilities.
Country of Origin: 100% Made in Germany.
