Leuze IS 218MM/2NO-8N0-S12 – Compact M18 Inductive Sensor for Precise Object Detection

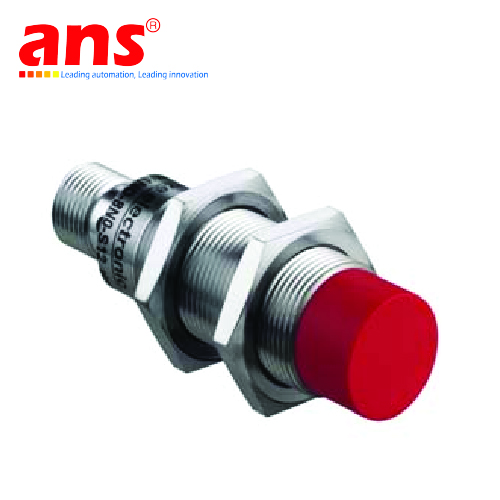

The Leuze IS 218MM/2NO-8N0-S12 is a high-performance cylindrical inductive proximity sensor in an M18 housing—small, robust, and ideal for detecting metal objects within limited installation spaces. Built to endure industrial environments, it ensures fast, reliable switching with minimal wear.

🔹 Key Features

• Detection range: Up to 6.4 mm (Sn 8 mm), enabling space-efficient design

• Ultra-fast switching: 2,000 Hz frequency, 60 ms readiness delay

• Robust Build: Nickel-plated brass housing, IP67 protection, operating temperature −25 °C to +70 °C

• Reliable electronics: NPN normally open (NO) transistor output, short-circuit protected, polarity reversal protected

• Compact form factor: Ø 18 × 63.5 mm, lightweight (~49 g), fixed via M18×1 thread

• Integrated M12 connector: A-coded 4-pin for easy wiring

• Stable operation: Repeatability ≤ 5 %, ≤ 10 % drift over temperatureENV

🎯 Why Choose the IS 218MM/2NO-8N0-S12?

• Maximum performance in minimal space: Ideal for confined applications like automation arms, tooling stations, or compact conveyor systems.

• Transfer-resistant durability: Designed for harsh, EMC-intensive industrial halls with full EMC compliance

• Simple installation & maintenance: Screw-in M18 mounting, nuisance-free operation with long service life.

• Cost-effective reliability: Metal housing ensures impact resistance; built-in circuit protection reduces downtime risks.
