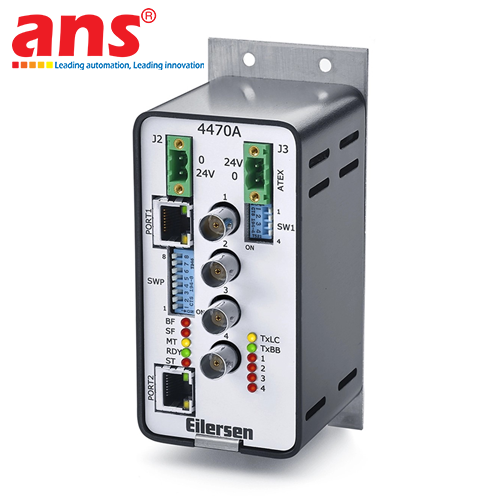

Eilersen 4X70A Digital Fieldbus Weighing Gateway Series
Price: Contact
Brand: Eilersen Vietnam
Category: Thiết bị đo lường & Kiểm tra
Supplier: AnhNghiSon
Origin: Denmark
0911472255The Eilersen 4X70A digital fieldbus weighing gateway and interface module series—encompassing the specialized industrial protocol designations 4170A, 4270A, 4370A, and 4470A—represents a premier line of high-performance communication networking components meticulously engineered and constructed in Denmark by Eilersen Electric. Operating as a centralized communication link and supreme interface node, the 4X70A series is responsible for aggregating high-resolution digitized weight data packages directly from Eilersen's proprietary digital capacitive load cells, executing high-frequency data synchronization, and seamlessly converting them into standardized industrial fieldbus networks. This permits flawless, lag-free data exchange directly with main PLCs (such as Siemens, Rockwell Automation, Schneider, Omron) or backbone plant SCADA/DCS supervisory architectures without incurring any data packets drop or mapping errors.
The specific model allocation across the 4X70A series corresponds to the most prevailing industrial automation communication standards in the modern market, providing system integration engineers great adaptability:
- Eilersen 4170A Model: Integrates a dedicated standard Profibus DP communication port interface.
- Eilersen 4270A Model: Features a high-speed Profinet communication interface, highly optimized for integration into modern Siemens TIA Portal automation ecosystems.
- Eilersen 4370A Model: Houses a dedicated EtherNet/IP interface interface, built explicitly for Allen-Bradley/Rockwell Automation PLC networks.
- Eilersen 4470A Model: Incorporates a versatile Modbus TCP or EtherCAT interface (configuration dependent), perfectly suited for PC-based architectures or general automation processing controllers.
Regarding hardware architecture, the 4X70A series features a highly compact, space-saving industrial form factor enclosed within a heavy-duty, flame-retardant electrical grade polymer housing, engineered specifically for rapid snap-on mounting on standardized DIN-rail profiles inside electrical switchboards. The modules permit direct multi-channel load cell routing for up to 4 Eilersen digital load cells simultaneously (expandable to higher nodes through extended layouts) without demanding traditional mechanical analog junction boxes, completely bypassing the risks of signal attenuation caused by field moisture ingress or loose mechanical contacts. The front panel incorporates an array of intelligent diagnostic LEDs that visually project continuous tracking of power input status, fieldbus network health, and the communication state of each connected load cell, drastically simplifying dynamic plant maintenance and field troubleshooting workflows. Furthermore, this series fully leverages Eilersen's absolute factory-calibrated matrix, operating via a true "Plug-and-Play" (Calibration-free) deployment matrix. In the event of system expansion, technical hot-swapping, or field module servicing, the new gateway can be deployed instantly on-site without requiring massive physical dead-weights to re-calibrate the industrial weighing node, minimizing production line downtime and generating exceptional long-term economic dividends for modern manufacturing plants.
• Manufacturer: Eilersen Electric Digital Weighing Technology A/S
• Country of Origin: Denmark
• Product Type: Digital Weighing Fieldbus Gateway / Industrial Interface Module Series
• Integrated Model Protocols & Interface Classifications:
- Eilersen 4170A: Standard Industrial Profibus DP Protocol Interface
- Eilersen 4270A: High-Speed Industrial Profinet Protocol Interface
- Eilersen 4370A: Standard Industrial EtherNet/IP Protocol Interface
- Eilersen 4470A: Industrial Modbus TCP Protocol Interface (Optional EtherCAT)
• Mounting Profile: Standard industrial DIN-rail snap-on mounting architecture
• Enclosure Material: Heavy-duty, high-insulation, impact-resistant thermal polymer housing conforming to European standards
• Load Cell Interfacing Capacity: High-speed multi-channel direct connection matrix designed exclusively for Eilersen digital capacitive load cells without analog junction box requirements
• Calibration Parameters: 100% pre-calibrated factory specifications from Denmark, absolute calibration-free / Plug-and-Play deployment matrix
• Diagnostic Indicators: Front-facing integrated diagnostic LED status array (Power status, Fieldbus network error, Loadcell data activity indicators)
• Data Transmission Speed: Ultra-fast data update rates ensuring flawless real-time data integrity for dynamic automated dosing and process batching loops
• Power Supply Requirements: 24Vdc ± 10% featuring integrated reverse polarity and overcurrent protection circuits, low power consumption matrix tailored for stable 24/7 continuous industrial processing
• Termination Mechanics: Heavy-duty screw terminal blocks for high mechanical security under processing plant vibrations and quick physical servicing disconnects
• Ambient Operating Temperature Range: -20°C to +50°C, fully optimized for continuous 24/7 processing inside tough industrial cabinet environments
