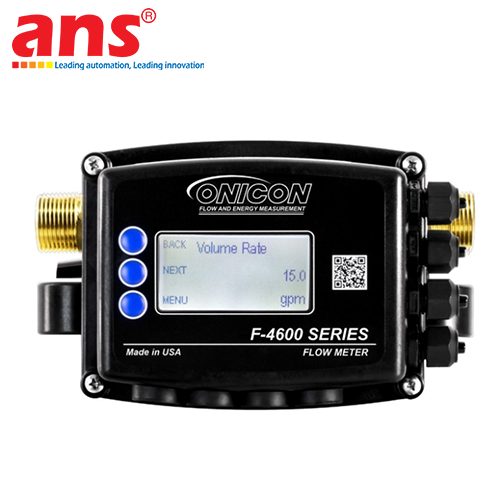

ONICON FT-4600-020-000-09

Product Overview:

The ONICON FT-4600-020-000-09 Inline Ultrasonic Flow Meter is a premium high-tier industrial fluid diagnostics instrument belonging to the world-renowned FT-4600 Series portfolio, engineered and manufactured 100% in the United States (USA Origin) by ONICON Incorporated. Within modern mechanical frameworks of large commercial smart complexes, hyper-scale Data Centers, high-end hospitality clusters, and industrial processing utilities, capturing absolute, uncompromised flow data loops is the critical baseline requirement for maximizing centralized energy performance matrices. The FT-4600-020-000-09 variation profiles a completely solid-state structural design that eliminates internal mechanical moving parts such as turbines or rotors, avoiding mechanical wear and friction decay while preserving absolute long-term measurement fidelity over decades of heavy-duty plant runtimes.

Transit-Time Ultrasonic Fluid Dynamics:

The underlying technological paradigm driving the FT-4600-020-000-09 variant leverages sophisticated Transit-Time Ultrasonic physics. The device embeds high-precision acoustic transducers opposite each other within the inline measuring tube channel. As the target media (water or industrial water/glycol solutions) glides through the tube, the system shoots alternating high-frequency acoustic wave pulses upstream and downstream relative to the flow direction vector. The integrated digital telemetry engine analyzes the microscopic time-of-flight delta ($\Delta t$) between these sonic signals to resolve continuous process velocity with exceptional data resolution. Because the inner measuring aperture is completely open, smooth, and unobstructed, it introduces zero physical restriction to the fluid stream, ensuring optimal pipeline pressure retention, decreasing utility pumping burdens on central grids, and preventing particulate clogging from scale, iron oxides, or loose particulate debris.

🛠️ ENGINEERING OPERATIONAL ADVANTAGES & HARDWARE PROFILE:

Programmatic Dry Contact Pulse Output Integration: The defining technical asset of the 020-000-09 hardware package is its native isolated Dry Contact Pulse Output topology, shifting away from standard voltage-pulsing networks. Functioning as a solid-state electronic switch completely isolated from main line voltages, it empowers field automation crews to seamlessly interface the meter with independent remote totalizer panels, legacy PLC processing units, or decentralized BMS data logging ports without risks of cross-voltage skew or intrusive loop noise interference.
Lead-Free Brass Metallurgy Hardening: The flow tube body is forged entirely from high-grade industrial lead-free brass alloy. This material selection secures absolute immunity against aggressive chemical breakdown from automated closed-loop chilled water additives and anti-freezing glycol agents, while simultaneously meeting strict global non-toxic mandates required for potable domestic water networks.

Environmental Hardening Metrics:

To protect delicate calculation microchips from harsh atmospheric conditions, the transmitter housing is fully armored to NEMA 4 ingress specifications (matching strict IP66 standards), yielding a dust-tight barrier impervious to heavy ambient condensation or high-pressure external water spray during field washdowns. The device flawlessly manages fluid processes scaling from 0°F up to 250°F (-18°C to 121°C) while managing high-pressure mechanical lines up to an intensive limit of 400 psi (~27.6 bar), allowing compact inline installation via threaded NPT or flanged arrangements spanning nominal sizes from ½" to 2½" inside facility pipe networks.

Key Features & Detailed Technical Specifications:

Manufacturer: ONICON Incorporated (United States)
Product Series: FT-4600 Series Inline Ultrasonic Fluid Instrumentation Portfolio
Full Manufacturing Model Designation: FT-4600-020-000-09
Measurement Principle: Non-intrusive Ultrasonic Differential Transit-Time physics.
System Accuracy Standard: $\pm1\%$ of active reading across specified process flows (calculated over a standard 25:1 operating window).
Measurement Repeatability Metric: Extremely stable tracking consistency locked at $\le \pm0.2\%$.
Overall Dynamic Range (Turndown Ratio): Massive 500:1 operational capability ensuring reliable capturing of trace low-flow velocities or overnight pipe leaks.
Nominal Pipe Dimension Range: Broad structural coverage optimizing nominal line sizes from ½" to 2½".
Driving Utility Power: 20-28 VAC/DC nominal input tolerance, running across dual AC/DC electrical infrastructure.
Signal Output Interface Array: * 1 x Analog Channel: Linear 4-20mA loop (proportional to instantaneous flow speed).
- 1 x Discrete Channel: Isolated Dry Contact Pulse Output (optimized for legacy remote totalizer counting).
Maximum Line Pressure Rating: 400 psi (~27.6 bar) structural pressure envelope.
Process Temperature Boundaries: Handles fluid media thermal windows spanning 0°F to 250°F (-18°C to 121°C).
Structural Material Hardening: Heavy-walled Lead-Free Brass flow body framework.
Enclosure Environmental Rating: Certified to NEMA 4 protective standards (dust-tight and water-spray immune specification).
Mechanical Mounting Layout: Inline integration (spliced directly in-line via standardized mechanical NPT threaded or flanged joints).
Field Maintenance Requirement: Zero mechanical maintenance overhead due to a solid-state design containing absolutely no moving components.
Country of Origin: 100% Made in the United States.
