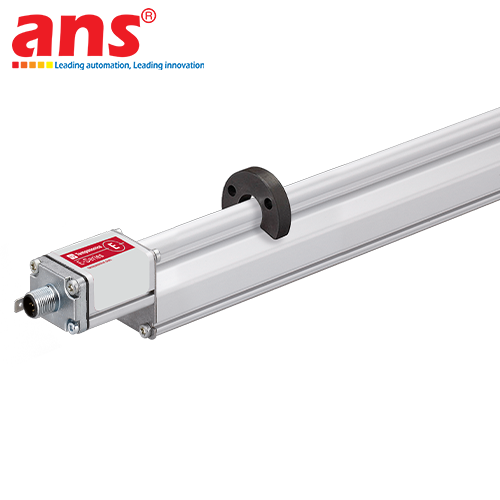

Temposonics E-Series Linear Position Sensor EP-0-0500M-D34-1-A01
Price: Contact
Brand: Temposonics
Category: Thiết bị đo lường & Kiểm tra
Supplier: AnhNghiSon
Origin: USA
0911472255The Temposonics E-Series Linear Position Sensor EP-0-0500M-D34-1-A01 (formerly engineered under the MTS Sensors brand) represents the absolute pinnacle of industrial-grade linear stroke measurement technology, proudly manufactured and certified with a 100% USA Origin. Operating on proprietary magnetostrictive principles, this sensor determines precise linear coordinates by calculating the time-of-flight of an ultrasonic wave triggered within the internal waveguide, completely removing physical or mechanical contact between moving components. The primary advantage of this non-contact architecture is the complete eradication of mechanical friction, surface abrasion, and internal wear over time. Consequently, the sensor delivers a virtually infinite mechanical operational life cycle, maintaining uncompromised measurement precision and linear repeatability across millions of continuous operating cycles under punishing manufacturing floor conditions.
Belonging to the elite E-Series Profile (EP) variant, the EP-0-0500M-D34-1-A01 features a ruggedized aluminum profile housing optimized for external mounting directly onto machinery tracks or parallel to industrial hydraulic cylinders. With a rated stroke measurement path of 500mm (0500M), the sensor provides ultra-smooth, real-time position telemetry backed by an integrated high-performance microprocessor. Because it utilizes absolute measurement coordinates, the transducer memorizes the exact real-time physical position immediately upon power boot-up without requiring a homing sequence or system recalibration. This key safety metric saves critical cycle initialization time and minimizes physical machinery crash risks during unexpected factory power drops.
Mechanically robust, the unit is encased in a rigid anodized aluminum extrusion profile, offering exceptional mechanical shock absorption and premium insulation against electromagnetic interference (EMI) generated by nearby high-power electric motors. The high-grade M12 connector string (D34 configuration) guarantees robust signal transmission speeds while resisting high-frequency factory floor vibrations. Boasting a certified IP67 ingress protection rating against fine dust and liquid penetration, this absolute linear sensor is the premier choice for plastic injection molding facilities, CNC wood routers, heavy steel rolling mills, high-speed material handling webs, and automated machine builders demanding absolute accuracy and unrivaled uptime reliability.
• Manufacturer: Temposonics (MTS Sensors)
• Product Type: Non-Contact Magnetostrictive Linear Position Sensor
• Product Series: Temposonics® E-Series
• Model Part Number (Code): EP-0-0500M-D34-1-A01
• Sensor Housing Style: External Aluminum Profile Style (EP)
• Country of Origin: 100% USA Origin
• Nominal Stroke Measuring Length: 500 mm (0500M)
• Operating Principle: Absolute, Non-Contact Magnetostrictive Sensing Technology
• Electrical Connection Interface: Standardized M12 connector (D34 designation) ensuring high-speed data transmission and vibration resistance
• Operating Input Voltage: 24 VDC (Industrial standard power configuration 1)
• Output Signal Type: Precision High-Resolution Analog/Digital output code A01 for real-time telemetry stability
• Ingress Protection Rating: Certified IP67 (Total protection against fine dust particles and liquid submersion)
• Enclosure Material: Heavy-duty Anodized Aluminum extrusion with superior EMI shielding attributes
• Measurement Type: Absolute measurement matrix (Eliminates the need for homing cycles upon power loss)
• Environmental Operating Temperature: Engineered to operate reliably across harsh industrial thermal boundaries
