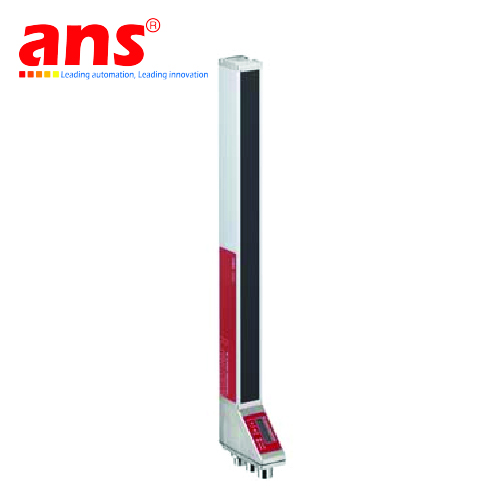

Light curtain receiver CML720i-R10-1760.A/PN-M12 Leuze Vietnam





The CML720i‑R10‑1760.A/PN‑M12 from Leuze is a light curtain receiver designed for high-precision object detection, positioning, and profile measurement. With a scanning field height of 1,760 mm and 10 mm beam spacing, it ensures accurate detection of even small objects in dynamic production environments.


🔍 Key Technical Features

  • Measuring Field Height: 1,760 mm

  • Beam Spacing: 10 mm (176 beams)

  • Minimum Detectable Object Size: 20 mm

  • Scanning Range: 0.3 to 7 meters

  • Response Time: ~5.68 ms total; 30 µs per beam

  • Power Supply: 18–30 V DC

  • Communication Interface: PROFINET

  • Connector Type: M12 8-pin, axial

  • Housing Material: Aluminum, protection class IP65

  • Operating Temperature Range: –30 °C to +60 °C

  • Weight: Approx. 1.9 kg

  • Compliance: IEC 60947-5-2, UL certified


✅ Key Benefits

  • High-resolution Detection: With 10 mm beam spacing and 176 beam channels, it can detect small and irregularly shaped objects with high accuracy.

  • Fast Scanning & Response Time: Ideal for fast-moving production lines and robotic systems requiring real-time data.

  • Easy Integration via PROFINET: Seamlessly connects to PLCs and industrial networks for smart automation.

  • Robust Industrial Design: IP65-rated aluminum housing ensures durability in harsh industrial environments.

  • Flexible Mounting: Compatible with various Leuze light curtain transmitters of the CML720i series.

1

100%  Germany Origin

Leuze Vietnam

Code : CML720i-T10-1760.A-M12
Light curtain transmitter, Operating range: 0.3...7m, Measurement field length:
1760mm, 176beams, 10mm beam spacing, LED, Infrared, min. object diameter:
20mm, 18-30VDC, M12 5pin connector, LED display, -30...60°C, IP65, Contains: 2x
BT-NC sliding block

2

100%  Germany Origin

Leuze Vietnam

Code : CML720i-R10-1760.A/PN-M12
Light curtain receiver, Object measurement, Operating range 0.3 ..7m, Measurement
field length 1760mm, 176 beams, 10mm beam spacing, Minimum object diameter 20
mm, PROFINET, axial connectors, -30 ... 60 °C, IP65,IO-Link

3

100%  Germany Origin

Leuze Vietnam

Code : CML720i-R10-1760.A/D3-M12
Light curtain receiver, Object measurement, Operating range 0.3 ..7m, Measurement
field length 1760mm, 176 beams, 10mm beam spacing, Minimum object diameter 20
mm, RS 485 Modbus, axial connectors, -30 ... 60 °C, IP65, IO-Link

4

100%  Germany Origin

Leuze Vietnam

Code : CML720i-R10-1760.A/CV-M12
Light curtain receiver, Object measurement, Operating range 0.3 ..7m, Measurement
field length 1760mm, 176 beams, 10mm beam spacing, Minimum object diameter 20
mm, Analog output, axial connectors, -30 ... 60 °C, IP65,IO-Link
