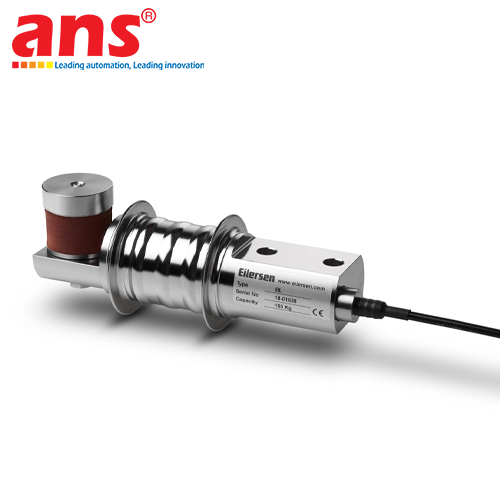

Eilersen BL / BL-Ex Digital Beam Load Cells
Price: Contact
Brand: Eilersen Vietnam
Category: Thiết bị đo lường & Kiểm tra
Supplier: AnhNghiSon
Origin: Denmark
0911472255The Eilersen BL Series Digital Beam Load Cells (encompassing the standard BL Non-ATEX and the high-end explosion-proof BL-Ex ATEX variations) are meticulously researched, engineered, and manufactured directly in Denmark, representing the absolute pinnacle of modern industrial electronic weighing architectures. Departing fundamentally from conventional strain-gauge load cell principles—which remain highly vulnerable to physical mechanical trauma and signal degradation caused by material fatigue over prolonged runtimes—Eilersen implements a patented non-contact digital capacitive technology. This operational methodology facilitates force registration without direct electrical-mechanical contact inside the measurement chassis, eliminating plastic structural deformation parameters. Consequently, the BL and BL-Ex load cell families achieve extraordinary mechanical resilience, tolerating extreme dynamic overloads of up to 1000% of their nominal rated capacities without sustaining structural damage or zero-point calibration drift (Zero-drift). This standard remains unmatched by any strain-gauge configuration available on the market, making the series the ideal technical choice for severe process networks characterized by sharp kinetic impacts, high-frequency physical vibrations, and intensive mechanical shocks.
The product lineup is strategically segmented into two specialized layouts matching localized facility demands: the standard BL variant intended for deployment in regulated safe areas, and the high-specification BL-Ex variant independently certified to stringent global explosion-proof standards like ATEX and IECEx directives. This authorization ensures uncompromised runtime safety inside hazardous zones (Zones 1, 2, 21, and 22), where combustible gas mixtures, volatile chemical solvents, or fine ignitable powders are present within petrochemical, pharmaceutical, and food processing facilities. The external envelope of the Eilersen BL/BL-Ex load cell is precision-machined from high-grade industrial stainless steel and incorporates advanced hermetic laser welding sealing treatments to secure rigorous IP68 and IP69K ingress ratings. This enables the load cells to seamlessly withstand Clean-in-Place (CIP) high-pressure hot water washdowns using aggressive chemical sanitizers, meeting the most demanding hygiene codes required by food, beverage, and medical cleanrooms. Furthermore, the analog measuring values are digitized directly within the rugged sensor body, permitting lossless data transmission over specialized interconnecting cables extending up to 100 meters without signal attenuation or electromagnetic interference (EMI) degradation. The embedded smart electronics support Plug-and-Play swap outs and feature comprehensive factory digital calibration metrics, enabling rapid, weight-free field balancing routines that cut plant commissioning timelines and optimize systemic operational uptime.
• Manufacturer: Eilersen Electric Digital Weighing Systems A/S
• Country of Origin: Denmark
• Primary Technology: Patented Digital Capacitive Measurement Configuration
• System Variations Available: BL (Standard version tailored for Safe Areas - Non-ATEX) and BL-Ex (Explosion-Proof version - Certified ATEX)
• Rated Nominal Capacities: Available in versatile capacity increments (10kg, 20kg, 30kg, 50kg, 100kg, 200kg, 300kg, 500kg, 1000kg)
• Safe Overload Tolerance Capacity: Up to 1000% (10 times) of the nominal rated sensor capacity
• Structural Chassis Material: High-grade Industrial Load-Bearing Stainless Steel (1.4542 / AISI 630)
• Enclosure Sealing Technology: Hermetically sealed via full automated laser welding lines
• Environmental Ingress Classification: IP68 and IP69K certified (Resistant to deep submersion and pressurized CIP hot water streams)
• Hazardous Area Certifications (BL-Ex only): ATEX & IECEx approved for Zones 1, 2, 21, 22 (Classification codes: Ex ib IIC T6 Gb / Ex ib IIIC T85°C Db)
• Data Transmission Output: High-resolution digital signal matrix using Eilersen proprietary RS485 communication protocol
• System Interfacing Scope: Fully compatible via Eilersen gateway interfaces with Profibus, Profinet, EtherCAT, EtherNet/IP, Modbus TCP, and standard Analog interfaces (4-20mA, 0-10V)
• Standard Connecting Cable Specs: Heavy-duty low-noise cables available from 6m to 20m spans (Extendable up to 100m without measuring precision loss)
• Rated Operating Temperature Window: -20°C to +60°C (Specialized custom configurations available for high-temperature ranges or cryogenic conditions)
