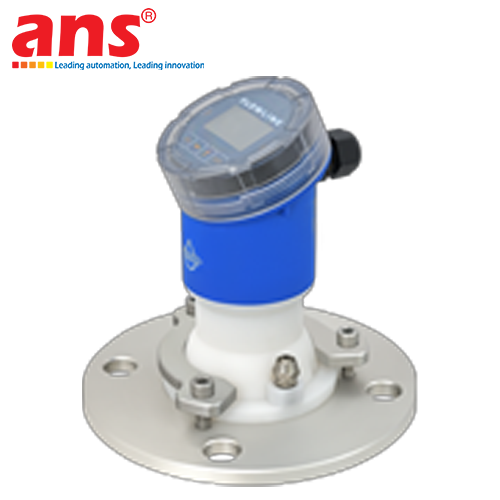

Flowline LR85 80GHz Pulse Radar Level Transmitter
Price: Contact
Brand: Flowline
Category: Thiết bị đo lường & Kiểm tra
Supplier: AnhNghiSon
Origin: USA
0911472255The Flowline LR85 80GHz Pulse Radar Level Transmitter is a premium non-contact continuous liquid level measurement instrument engineered by Flowline (USA) for demanding liquid, aggressive chemical, high-pressure, and high-temperature storage applications in process vessels, deep sumps, and large storage tanks. Operating under challenging process conditions, the high-frequency 80GHz FMCW/Pulse radar technology emits a focused short-wavelength signal that effortlessly penetrates heavy steam, vapor clouds, surface foam, and condensation to deliver highly accurate and repeatable echo returns.
The Flowline LR85 features an ultra-narrow 3 to 4-degree beam angle that concentrates signal energy directly onto the liquid surface, effectively eliminating false echo interference caused by internal vessel structures such as agitators, heating coils, ladders, or narrow nozzle necks. Fully encapsulated with high-grade PFA/PVDF or 316L Stainless Steel wetted materials, the transmitter provides exceptional corrosion resistance against aggressive acids (HCl, H2SO4, HNO3), caustics, and volatile organic solvents.
Equipped with a standard 2-wire 4-20mA HART output signal, the LR85 integrates wireless Bluetooth technology for seamless setup and field diagnostics. Maintenance engineers can configure measuring ranges, adjust damping times, and analyze live echo curves using the intuitive Flowline WebCal app on iOS or Android devices. Featuring a rugged IP68/NEMA 6P submersible enclosure and international explosion-proof / intrinsically safe approvals (ATEX/IECEx/FM/CSA), the Flowline LR85 delivers outstanding reliability across chemical processing, petrochemical, water treatment, pharmaceutical, and power generation industries.
• Manufacturer: FLOWLINE (USA)
• Model: LR85
• Product Type: Non-Contact 80GHz Pulse Radar Level Transmitter for Liquids
• Measuring Range: Up to 30 m (98.4 ft)
• Operating Frequency: 80 GHz FMCW / Pulse Radar
• Accuracy: ± 1 mm (± 0.04 in)
• Beam Angle: 3° - 4° (Ultra-narrow beam for maximum false-echo immunity)
• Signal Output: 4-20 mA (Loop-powered 2-wire) with HART 7 Protocol
• Configuration & Setup: Bluetooth wireless setup via Flowline WebCal App / HART Field Communicator
• Local Display: Optional plug-in LCD display module / Mobile App monitoring
• Wetted Materials: Fully encapsulated PFA / PVDF / 316L Stainless Steel (Maximum chemical corrosion resistance)
• Enclosure Material: PBT/PC or 316L Stainless Steel / Die-cast Aluminum
• Process Pressure: -1 to 20 bar (-14.5 to 290 PSI) or high-pressure versions
• Process Temperature: -40°C to 130°C (-40°F to 266°F) or high-temperature options
• Process Connection: 1-1/2" NPT / G 1-1/2" thread or ANSI / DIN Flanges
• Ingress Protection: IP68 / NEMA 6P (Fully dust-tight and submersible enclosure)
• Supply Voltage: 12 - 30 VDC (2-wire loop-powered)
• Hazardous Area Approvals: ATEX / IECEx / FM / CSA Intrinsically Safe & Explosion-Proof
• Quality Compliance: CE, RoHS, ISO 9001
• Standard Accessories: User manual, Factory calibration certificate, process connection adapter.
