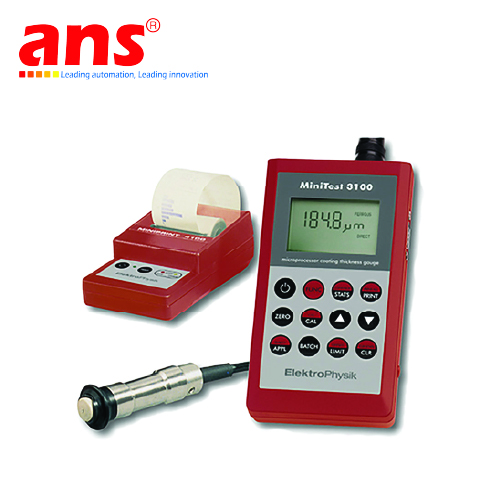

Coating thickness gauge MiniTest 3100 Elektrophysik Vietnam





The MiniTest 3100 is no longer available and has been replaced by successor model MiniTest 4500/2500.

The all-rounder: the MiniTest 3100 can be combined with a variety of probes to make it suitable for use in many different areas. Measurement is non-destructive and covers the following ranges:

  • 0 – 50mm for non-magnetic coatings on steel
  • 0 – 100mm for insulating coatings on non-ferrous metals
  • 10 – 200µm for copper coatings on insulating base materials
  • 0 – 1600µm for powder coatings on steel and non-ferrous metals

Flexible application using the MiniTest 3100

The MiniTest 3100 system has numerous probes suited to a variety of coating thickness measurement tasks, as well as different calibration methods and analysis options:

  • Specialised probes can be supplied,g. completely sealed probes for use in wet areas, and heat-resistant probes for temperatures up to 250°C and 350°C
  • A special calibration method allows for countless different applications; calibration using unidentified coatings (CTC method) enables calibration on objects with inaccessible uncoated areas.
  • The calibration curve recorded in the factory is stored in the probe connector making it easy to interchange probes on site.
  • All probes are equipped with durable poles to ensure long life even for frequent use on abrasive substrates. The pole surfaces are highly polished.
