Flowline EchoPulse LR30 26 GHz Pulse Radar Level Transmitter
Price: Contact
Brand: Flowline
Category: Thiết bị đo lường & Kiểm tra
Supplier: AnhNghiSon
Origin: USA
0911472255The Flowline EchoPulse® LR30 Non-Contact Pulse Radar Liquid Level Transmitter is an advanced industrial level measuring solution engineered specifically for municipal wastewater management, stormwater lift stations, reservoirs, open channels, rivers, and outdoor sump applications. Operating at a high frequency of 26 GHz, the pulse radar technology penetrates condensation, steam, wind turbulence, surface agitation, light foam, and floating debris to deliver steady, highly accurate level measurements (±3mm).

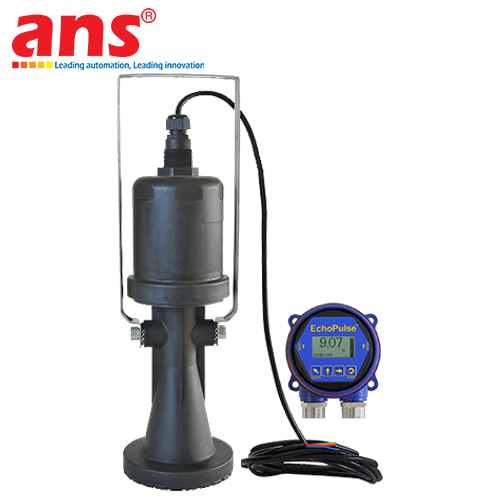

Designed for convenience and safety in challenging field environments, the LR30 system features a rugged IP68 submersible Nylon sensor transducer paired with a 304 stainless steel mounting bracket, connected via a 10-meter (32.8 ft) shielded cable to an IP67 wall-mounted remote display module. This allows operators to safely mount the sensor head inside wet wells or over waterways while performing configuration, setup, and routine monitoring at an accessible eye-level location. The remote LCD dot-matrix display features push-button navigation, real-time level monitoring, percent-of-span bar graphs, and false echo signal curve rejection capabilities.
• Manufacturer: Flowline (USA)
• Product Series: EchoPulse® LR30 Series (Remote Display Version)
• Measurement Technology: 26 GHz Non-contact Pulse Radar
• Measurement Range: 12" to 98.4 feet (0.3m to 30m)
• Accuracy: ± 3 mm
• Dead Band: 12" (30 cm)
• Signal Output: 4-20 mA, two-wire (Loop-powered) / Optional HART 7
• Signal Fail-safe: Selectable 3.9 mA, 20.5 mA, or 22 mA
• Supply Voltage: 16 - 26 VDC (22.5 mA max consumption)
• Remote Display Module:
- Display Type: LCD dot-matrix with integral push-button configuration
- Display Modes: Distance (m/ft), Percent of span bar, Echo signal return curve
- Enclosure: Wall-mount Polycarbonate rated IP67 / NEMA 4X
- Included Cable: 32.8 ft (10m) 6-conductor shielded cable with PVC jacket
• Sensor Head Construction:
- Enclosure Rating: Submersible IP68
- Enclosure Material: Heavy-duty Nylon
- Antenna / Transducer Material: 316L Stainless Steel with PTFE inner shield
- Mounting Hardware: 304 Stainless Steel bracket
• Process Mount: 304 SS Mounting Bracket or 1" NPT
• Beam Angle: 12°
• Process Temperature Range: -40°C to 100°C (-40°F to 212°F)
• Working Pressure Range: Atmospheric pressure
• Certifications & Approvals: cTUVus, FCC, CE, RoHS compliant
