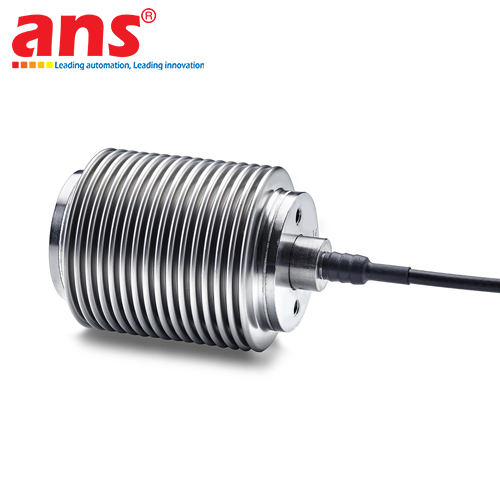

Eilersen SBL Digital Beam Load Cell
Price: Contact
Brand: Eilersen Vietnam
Category: Thiết bị đo lường & Kiểm tra
Supplier: AnhNghiSon
Origin: Denmark
0911472255The Eilersen SBL Digital Beam Load Cell represents a pinnacle of industrial measurement engineering, designed and manufactured by Eilersen Electric – a pioneering Danish manufacturer with over 50 years of expertise in high-end digital weighing technology. The fundamental core that sets the Eilersen SBL apart from conventional strain-gauge based load cells is its proprietary, patented digital capacitive technology. By utilizing a measurement principle based on changes in electrical capacitance under force rather than significant mechanical deflection, the device exhibits unmatched mechanical robustness. It is engineered to endure exceptionally high mechanical overloads (up to several hundred percent of the rated capacity) and exhibits superior resistance to high side-loads, shock forces, and torsion without incurring permanent mechanical deformation or resolution drifts.
The hardware architecture of the SBL series is highly optimized for the most demanding heavy-duty industrial environments and strict hygienic protocols. The load cell is constructed from high-grade stainless steel and hermetically sealed by advanced laser welding, achieving absolute protection ratings of IP68 and IP69K. Consequently, the sensor is completely immune to the ingress of water, high-pressure steam jet cleaning, mechanical dust, and aggressive CIP/SIP chemical detergents. This makes it uniquely qualified for food processing lines, dairies, breweries, chemical processing, and pharmaceutical cleanrooms. Furthermore, the output signal is 100% factory-calibrated and fully digital, ensuring long-distance transmission without any loss of accuracy or susceptibility to electromagnetic interference (EMI). The smart "Plug-and-Play" architecture permits direct sensor replacement on-site without the need for time-consuming and complicated re-calibration procedures using actual test weights, thereby minimizing production downtime and dramatically enhancing overall operational productivity.
• Manufacturer: Eilersen Electric Digital Weighing Technology A/S
• Country of Origin: Denmark
• Product Line: Digital Beam Load Cell
• Model Designation: SBL
• Sensing Technology: Patented Digital Capacitive Technology
• Construction Material: High-grade Stainless Steel 1.4542 (AISI 630)
• Environmental Protection Rating: IP68 and IP69K (Hermetically laser-sealed)
• Rated Capacities (Capacity Range): Multiple standardized capacity variants tailored to system specifications
• Safe Overload Limit: 500% to 1000% of nominal rated capacity without mechanical degradation
• Output Interface: High-resolution Digital signal, completely immune to EMI/RFI interference
• Cable Specifications: Standard heavy-duty cable or optional armored stainless steel cable jacket against rodent damage
• Fieldbus Compatibility (via Eilersen Interface Modules): Profibus DP, Profinet, EtherNet/IP, Modbus TCP/IP, DeviceNet, RS485, and Analog outputs (0-10V / 4-20mA)
• Hazardous Area Classification (Optional): ATEX / IECEx certified versions for explosive environments (Zone 1, 2, 21, 22)
• Special Operational Features: Plug-and-Play deployment, completely calibration-free system replacement capabilities
