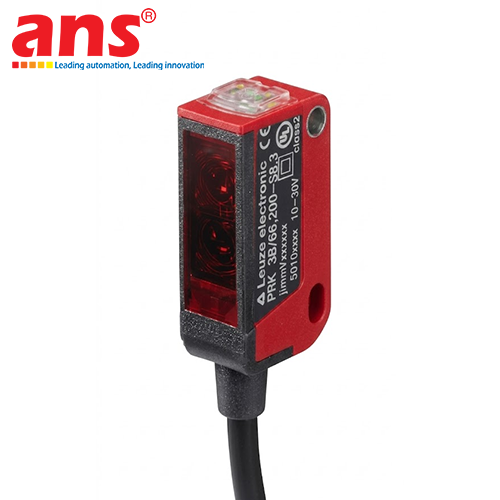

LEUZE PRK25C.D1/4P-M12 POLARIZED RETRO-REFLECTIVE PHOTOELECTRIC SENSOR

DEEP PRODUCT OVERVIEW & SYSTEM ARCHITECTURE
The Leuze PRK25C.D1/4P-M12 is a premium industrial polarized retro-reflective photoelectric sensor belonging to the robust system ecosystem of the 25C Series engineered by the global automation tech pioneer Leuze electronic (Germany). Enclosed in a standard rectangular cubic layout (Standard Cubic Form Factor), this high-grade device optimizes mechanical stability when rigidly locked onto high-volume automated manufacturing lines. The PRK25C.D1/4P-M12 marries advanced optical wavelength filtration with smart integrated microelectronic digital conditioning boards to secure uncompromised measurement data streams. It functions as a highly specialized automation sensing block built specifically to conquer complex target tracking, endure severe daily industrial Washdown procedures, and guarantee long-term drift-free processing across centralized control infrastructure.

POLARIZED RETRO-REFLECTIVE PRINCIPLE & HIGH-GLOSS IMMUNITY
The sensor executes its inspection routines based on a retro-reflective optical path paired with high-end polarization filtration hardware. The internal transmitter module continuously emits a high-visibility pulsed red LED light beam straight through the lens window. This beam crosses the physical tracking gap, hits a matching optical retro-reflective mirror (Reflector) positioned directly opposite, and bounces back 180 degrees into the receiver array.
The primary technical asset of the PRK25C.D1/4P-M12 model is its integrated physical Polarization Filter. This optical module acts as a smart logic barrier: it strictly accepts light rays that have undergone polarization modulation upon returning from the reflective mirror, while systematically isolating and rejecting unpolarized glare or specular reflections reflecting directly off high-gloss target substrates (such as bright steel sheets, shiny machined blanks, clear nilon shrink-wraps, or highly reflective PE stretch film layers). This entirely neutralizes false output triggering—a persistent fault common to traditional diffuse and baseline optical sensors—ensuring flawless object profiling.

MASSIVE WIDE-AREA RANGE & POWERFUL 270° MECHANICAL POTENTIOMETER CALIBRATION
- Outstanding Range Performance Index: Moving far beyond miniaturized sensors that suffer from narrow distance limitations, the 25C Series secures an extensive guaranteed operational scanning distance spanning from 8 meters up to 10 meters (the final amplitude boundary is governed by the total physical area of the paired optical reflector, such as standard TK/TKS reflective models). This wide-area range makes it the absolute ideal choice for wide conveyor tracking networks, large linear logistics transit paths, and automated vehicle gate controls.
- Rugged 270-Degree Multi-turn Mechanical Potentiometer: Provides maintenance crews with an intuitive, reliable interface to manually dial in fine sensitivity threshold settings down to the exact millimeter on-site. This rotary-limited tuning block enables exceptional field customization, allowing the hardware to adapt smoothly across thin or thick packaging membranes and perform through heavy dust accumulations typical to wood processing workshops and raw construction material manufacturing plants.

DUAL PNP TRANSISTOR TOPOLOGY & EXTENDED WASH-DOWN RESISTANCE
- Integrated Complementary "/4P" Output Architecture: Indicates that the sensor houses twin independent digital switching channels driven by heavy-duty PNP transistors operating in a complementary parallel logic matrix: Channel 1 serves Light Switching mode (Output closes to ON when full reflector beam returns) and Channel 2 manages Dark Switching mode (Output closes to ON the instant a target object breaks the red light beam). This complementary arrangement allows controls engineers to route clear digital states directly into PLC input cards (Siemens, Mitsubishi, Omron, Schneider, Allen Bradley, etc.) without writing complex programmatic inversion networks in the code.
- Elite IP67 and IP69K Ingress Protection Seals: The ruggedized cubic enclosure is co-molded from specialized high-strength ABS / PC engineering polymer alloys, paired with an optical grade PMMA lens window that maintains total light transmittance. Its hermetically sealed single-body structure blocks fine particulate dust ingress and withstands aggressive high-pressure, high-temperature hot-water jet clean-in-place cleanings mixed with intense industrial washdown sanitation chemicals. Fitted with an industrial standard M12 4-pin quick disconnect metal male plug and sustaining a massive operational thermal spectrum from deep freezing temperatures at -40°C up to high-ambient conditions of +60°C, the Leuze PRK25C.D1/4P-M12 operates flawlessly inside heavy automotive assembly plants, industrial deep-freeze storage chains, and demanding food and beverage lines.

OPTICAL DATA & SENSING PROFILES
- Operating Principle: Polarized Retro-reflective Photoelectric Sensor
- Product Series: 25C Series Lineup
- Emitted Light Source: LED, visible red beam (High-frequency pulsed light configuration)
- Maximum Operating Sensing Range: Up to 8 meters to 10 meters (The full scale distance is strictly governed by the specific model variant and surface area of the paired retro-reflective target mirror)
- Specialized Tracking Capability: Systematically suppress specular reflection glare; engineered for the high-accuracy profiling of glossy substrates, metallic finishes, transparent film layers, and stretch-wrapped cargo pallets.

ELECTRICAL DATA & TRANSISTOR OUTPUTS
- Supply Operating Voltage: 10 ... 30 V DC (Includes integrated reverse polarity power rail protection)
- Total Digital Channels: 2 Independent Digital Output channels (Complementary configuration)
- Digital Switching Transistor Type: PNP Configuration
- Output Switching Logic State:
  + Output Channel 1 (Light switching): Closes circuit loop to ON when the optical path with the reflector is unobstructed
  + Output Channel 2 (Dark switching): Closes circuit loop to ON the exact moment a target blocks/interrupts the beam path
- Circuit Safety Protection: Short-circuit output protection, active overcurrent surge suppression.

CONNECTION INTERFACE & CALIBRATION CONTROL
- Electrical Connection Type: Standard M12 Quick Disconnect Plug (Male Connector)
- Contact Pin Configuration: 4-pin layout arrangement
- Mechanical Connector Interface: Fitted with a heavy-duty bọc giắc Metal threaded sleeve for industrial machinery shock and vibration absorption
- Mechanical Plug Alignment: A-Coded standard specification
- Sensitivity Adjustment Control: Built-in 270-degree rotational Potentiometer for ultra-precise manual threshold field calibration
- On-Board Status Indicators: High-visibility multi-color status LEDs mapped onto the housing shell for swift visual alignment checks and field diagnostic evaluation.

MECHANICAL PROPERTIES & MATERIAL COMPOSITION
- Enclosure Structure Style: Standard rectangular block profile (Standard Cubic Form Factor)
- Shell Construction Materials: Heavy-duty industrial grade ABS / PC engineering plastic polymer alloy
- Optical Window Lens Material: High-transmittance scratch-resistant PMMA plastic polymer
- Physical Mounting Assembly: Engineered with structural through-hole fixing ports for rigid structural screw-down fastening onto machine brackets.

ENVIRONMENTAL RATINGS & COMPLIANCE
- Ingress Protection Rating: IP67 and IP69K (Completely dust-tight, temporary water immersion proof, and washdown certified against intense high-pressure hot-water sanitations)
- Ambient Operating Temperature Spectrum: -40°C to +60°C
- Ambient Storage Temperature Spectrum: -40°C to +70°C
- Quality & System Standards Safety: cULus certified, fully aligned under rigid global international IEC 60947-5-2 guidelines for industrial sensing equipment.
