Flowline EchoPulse LR20 26 GHz Pulse Radar Level Transmitter
Price: Contact
Brand: Flowline
Category: Thiết bị đo lường & Kiểm tra
Supplier: AnhNghiSon
Origin: USA

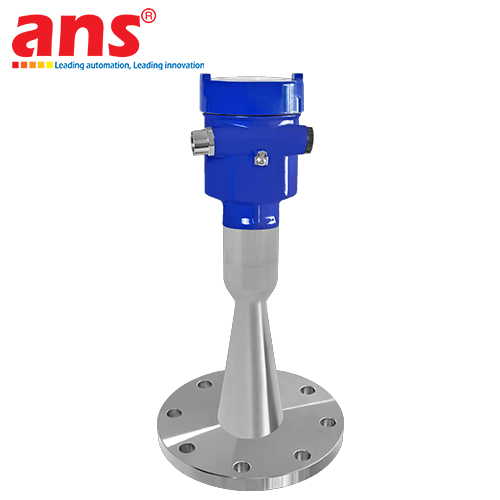

0911472255The Flowline EchoPulse® LR20 Non-Contact Pulse Radar Liquid Level Transmitter is a high-performance industrial level sensor engineered for continuous measurement of aggressive chemicals, highly corrosive liquids, and process fluids in above or below-grade storage tanks. Operating at a high frequency of 26 GHz, the transmitter is completely immune to the effects of vapor, condensation, surface foam, turbulence, and temperature or pressure variations within process vessels.
Designed for harsh chemical applications, the LR20 features a 316L stainless steel horn antenna paired with an internal PTFE inner shield, providing superior resistance against harsh acids, bases, and solvents. The transmitter installs directly via a 3" or 4" ANSI flange fitting and is housed in a rugged IP67 cast aluminum enclosure. An integrated LCD dot-matrix display module with push-button controls allows for seamless field configuration, real-time level display in engineering units or percentage bar graphs, and false echo signal curve recognition for advanced echo rejection.
• Manufacturer: Flowline (USA)
• Product Series: EchoPulse® LR20 Series
• Measurement Technology: 26 GHz Non-contact Pulse Radar
• Measurement Range: 12" to 65.6 feet (0.3m to 20m)
• Accuracy: ± 3 mm
• Dead Band: 12" (30 cm)
• Signal Output: 4-20 mA, two-wire (Loop-powered)
• Signal Fail-safe: Selectable 3.9 mA, 20.5 mA, or 22 mA
• Supply Voltage: 16 - 26 VDC (22.5 mA max consumption)
• Display Type: LCD dot-matrix with integral push-button configuration
• Display Modes: Distance (m/ft), Percent of span bar, Echo signal return curve
• Beam Angle: 12° (3" Flange), 8° (4" Flange)
• Enclosure & Hardware:
- Enclosure Material: Heavy-duty cast aluminum (IP67 / NEMA 4)
- Window Material: Polycarbonate
- Antenna Material: 316L Stainless Steel with PTFE inner shield
- Seals: Viton / Silicone
• Process Mount: 3" ANSI Flange or 4" ANSI Flange
• Conduit Entrance: (1) 1/2" NPT connector, (1) M20 x 1.5 plug
• Process Temperature Range: -40°C to 150°C (-40°F to 302°F)
• Working Pressure Range: -14.5 to 72 psi (-1 to 5 bar)
• Certifications & Approvals: cTUVus, FCC, CE, CRN Registered, RoHS compliant
