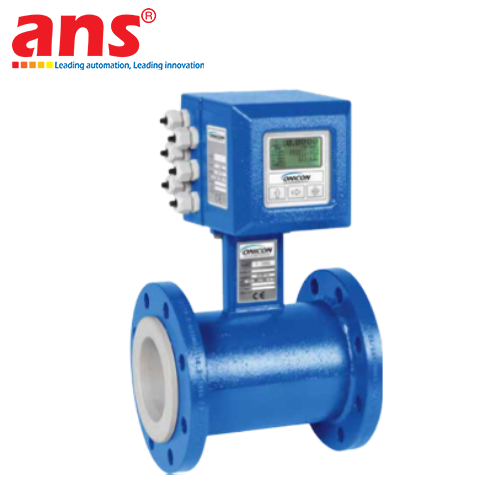

ONICON FT-3212-11511-1021-102 Inline Electromagnetic Flow Meter
Price: Contact
Brand: ONICON
Category: Thiết bị đo lường & Kiểm tra
Supplier: AnhNghiSon
Origin: USA
0911472255ONICON FT-3212-11511-1021-102
Introduction: The ONICON FT-3212-11511-1021-102 Inline Electromagnetic Flow Meter is a premium process-grade fluid diagnostics instrument belonging to the high-efficiency FT-3000 Series portfolio, engineered and manufactured 100% in the United States (USA Origin) by ONICON Incorporated. Utilizing Faraday's Law of Electromagnetic Induction to determine deterministic fluid velocities, this sophisticated meter features a completely unobstructed internal flow path that contains absolutely no moving mechanical parts. This non-intrusive layout completely bypasses pipeline pressure drop overheads, eliminates the risk of particulate clogging or debris accumulation, and ensures continuous plant operation with minimal long-term maintenance overheads.
The defining operational benefit of the FT-3212-11511-1021-102 variant lies in its rigorous individual wet-calibration program executed on factory flow loops prior to dispatch, shipping alongside an official Calibration Certificate. This certified data logging validation guarantees an elite system accuracy rating spanning between ±0.2% and ±0.4% of active reading, making the meter an ideal component for severe energy management sub-metering and optimizing centralized process loop efficiencies. It natively handles an extended array of process media—ranging from commercial chilled water grids and domestic water loops to industrial conductive glycol mixtures. Built to interface natively with modern connected telemetry nodes, the meter provides concurrent linear analog 4-20mA loops, a discrete Digital Output, and a high-fidelity programmable Pulse Output for zero-latency automation integration.
⚠️ CRITICAL TECHNICAL OPERATIONAL PROMPT:
-
Fluid Media Prerequisites: Because this instrument operates on electromagnetic induction principles, it requires conductive liquids to function. It is completely incompatible with non-conductive media such as demineralized/distilled pure water, chemical oils, or petroleum fluids.
-
Hydraulic Alignment Profile: To preserve the factory-certified ±0.2% to ±0.4% calibration threshold, the meter must be positioned in a location that guarantees a continuous full-pipe state, supported by standard upstream and downstream straight pipe runs to dissipate fluid swirls or cavitation profiles.
Key Features & Technical Specifications:
-
Manufacturer: ONICON Incorporated (United States)
-
Product Series: FT-3000 Series Inline Electromagnetic Flow Meters Portfolio
-
Full Manufacturing Model Code: FT-3212-11511-1021-102
-
Measurement Principle: Electromagnetic (Mag-meter technology) – delivers a non-intrusive flow path ensuring absolute zero pressure drop overheads.
-
System Accuracy Standard: Achieves an elite margin of ±0.2% to ±0.4% of active reading across standard flow velocities.
-
Calibration Verification Metric: Wet-calibrated at the factory to guarantee exceptional data fidelity, bundled with a serialized verification certificate.
-
Signal Output Interface Array: * 1 x Analog 4-20mA loop (proportional to fluid velocity).
-
1 x Discrete Digital Output channel.
-
1 x High-fidelity programmable Pulse Output (optimized for totalization metrics).
-
-
Media Adaptability: Suitable for HVAC chilled water, hydronic heating lines, cooling tower condenser water, domestic water loops, and process-grade conductive glycol solutions.
-
Mechanical Mounting Layout: Inline integration (spliced directly in-line via standardized flanged or threaded mechanical connections).
-
Country of Origin: 100% Made in the United States.
