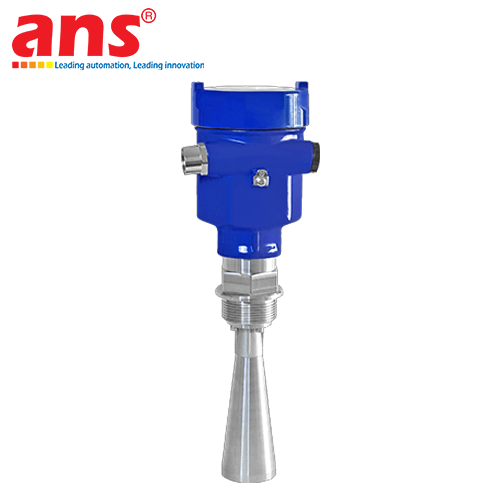

Flowline EchoPulse LR15 26 GHz Pulse Radar Level Transmitter
Price: Contact
Brand: Flowline
Category: Thiết bị đo lường & Kiểm tra
Supplier: AnhNghiSon
Origin: USA
0911472255The Flowline EchoPulse® LR15 Non-Contact Pulse Radar Liquid Level Transmitter is a high-performance industrial solution designed for continuous level measurement of water, wastewater, petroleum, and diluted chemical solutions. Operating at a high frequency of 26 GHz, the transmitter delivers reliable measurements unaffected by vapor, condensation, surface foam, turbulence, or temperature fluctuations within process tanks.
Constructed with a rugged IP67 aluminum enclosure and a 316L stainless steel horn antenna and process mount, the LR15 is built to withstand challenging industrial environments with elevated temperatures and pressures. Featuring a compact 12-inch (30 cm) deadband, it enables full utilization of tank capacity. The integrated LCD dot-matrix display module with push-button controls provides easy configuration, real-time monitoring of level percentage or engineering units, and false echo signal curve analysis for false echo rejection.
• Manufacturer: Flowline (USA)
• Product Series: EchoPulse® LR15 Series
• Measurement Technology: 26 GHz Non-contact Pulse Radar
• Measurement Range: 12" to 98.4 feet (0.3m to 30m)
• Accuracy: ± 3 mm
• Dead Band: 12" (30 cm)
• Signal Output: 4-20 mA, two-wire (Loop-powered)
• Signal Fail-safe: Selectable 3.9 mA, 20.5 mA, or 22 mA
• Supply Voltage: 16 - 26 VDC (22.5 mA max consumption)
• Display Type: LCD dot-matrix with integral push-button configuration
• Beam Angle: 18° (2" horn), 12° (3" horn), 8° (4" horn)
• Enclosure & Hardware:
- Enclosure Material: Heavy-duty cast aluminum (IP67 / NEMA 4)
- Window Material: Polycarbonate
- Antenna & Process Mount Material: 316L Stainless Steel
- Seals: Viton / Silicone
• Process Mount: 1-1/2" NPT / Flange option
• Conduit Entrance: (1) 1/2" NPT connector, (1) M20 x 1.5 plug
• Process Temperature Range: -60°C to 150°C (-76°F to 302°F)
• Working Pressure Range: -14.5 to 150 psi (-1 to 10 bar)
• Certifications & Approvals: cTUVus, FCC, CE, CRN Registered, RoHS compliant
