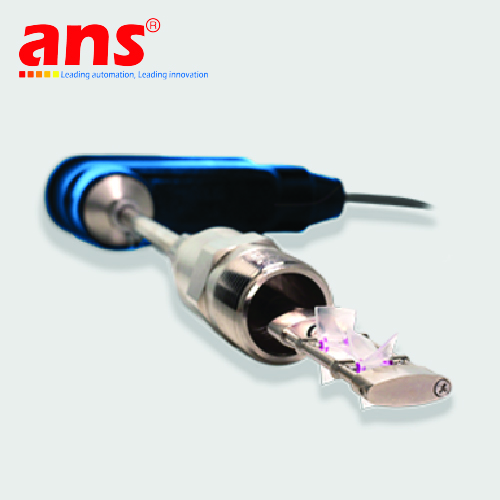

F-1100-10-D4-1221 Turbine Flow Meters Onicon Vietnam





Onicon F-1000 Series – High Accuracy Turbine Flow Meters (Insertion & Inline)

The Onicon F-1000 Series turbine flow meters are designed for highly accurate liquid flow measurement in HVAC, water, and process applications. Available in insertion (hot-tap) and inline configurations, they provide ±0.5% accuracy, long-term stability, and flexible outputs for seamless integration into building automation and energy management systems.

🔧 Key Features

  • Hot-tap insertion design – install or remove without system shutdown, reducing downtime and maintenance costs.

  • Exceptional accuracy – ±0.5% of reading under normal conditions; ±1–2% across extended flow ranges.

  • Wide turndown ratio – up to 175:1 with a flow range of 0.17–30 ft/s (0.05–9 m/s).

  • Dual turbine design – minimizes swirl effects, requiring shorter straight pipe runs.

  • Multiple outputs – 4–20 mA, 0–10 V, frequency, pulse, alarm relay; optional Bluetooth for wireless setup.

  • NIST-traceable calibration – each unit is factory calibrated and shipped with a certificate.

  • Durable construction – tungsten carbide shaft and non-magnetic pickup ensure long service life.

📊 Technical Specifications

  • Pipe sizes: from ¾″ (20 mm) copper inline up to 72″ (1800 mm) for insertion models

  • Flow velocity range: 0.17–30 ft/s (0.05–9 m/s)

  • Accuracy: ±0.5% of reading (standard flow), ±1–2% (extended range)

  • Power supply: 24 VAC/DC, 1–3.6 W depending on model

  • Outputs: Frequency, scaled pulse, analog (4–20 mA / 0–10 V), alarm relay

  • Operating environment: Compatible with clean, non-corrosive liquids

🎯 Applications

  • HVAC chilled water, hot water, condenser water, and glycol loops

  • Cooling towers and heat exchanger systems

  • Process water and utility monitoring

  • Municipal and industrial water distribution

  • Energy measurement for building management systems



Code (part number) tên sản phẩm Key seo
F-1100-11-C3-1221  F-1000 Series / Turbine Flow Meters Onicon Turbine Flow Meters,  Đồng hồ đo lưu lượng F-1000 Seríes Onicon, đồng hồ đo lưu lượng
F-1100-10-D4-1221 F-1000 Series / Turbine Flow Meters Onicon Turbine Flow Meters,  Đồng hồ đo lưu lượng F-1000 Seríes Onicon, đồng hồ đo lưu lượng
F-1100-10-E5-1221  F-1000 Series / Turbine Flow Meters Onicon Turbine Flow Meters,  Đồng hồ đo lưu lượng F-1000 Seríes Onicon, đồng hồ đo lưu lượng
F-1100-10-C3-1221 F-1000 Series / Turbine Flow Meters Onicon Turbine Flow Meters,  Đồng hồ đo lưu lượng F-1000 Seríes Onicon, đồng hồ đo lưu lượng
F-1100-10-E5 -1221  F-1000 Series / Turbine Flow Meters Onicon Turbine Flow Meters,  Đồng hồ đo lưu lượng F-1000 Seríes Onicon, đồng hồ đo lưu lượng
F-1100-10-D4-1221           F-1000 Series / Turbine Flow Meters Onicon Turbine Flow Meters,  Đồng hồ đo lưu lượng F-1000 Seríes Onicon, đồng hồ đo lưu lượng
F-1100-00-D4-1221 F-1000 Series / Turbine Flow Meters Onicon Turbine Flow Meters,  Đồng hồ đo lưu lượng F-1000 Seríes Onicon, đồng hồ đo lưu lượng
F-1100-00-C3-1221 F-1000 Series / Turbine Flow Meters Onicon Turbine Flow Meters,  Đồng hồ đo lưu lượng F-1000 Seríes Onicon, đồng hồ đo lưu lượng
F-1100-10-B2-1221 F-1000 Series / Turbine Flow Meters Onicon Turbine Flow Meters,  Đồng hồ đo lưu lượng F-1000 Seríes Onicon, đồng hồ đo lưu lượng
