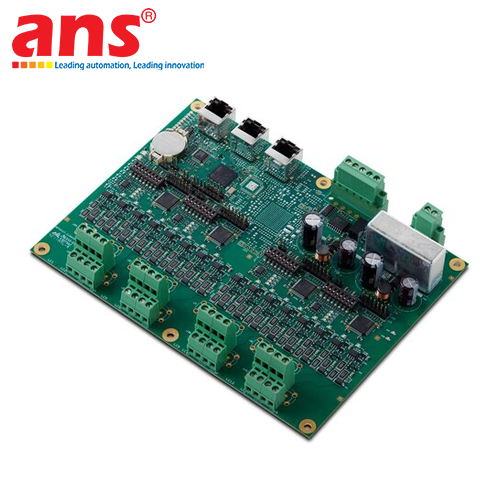

The Eilersen 5016OEM Digital Weighing Interface Card represents the premium tier of high-capacity embedded instrumentation hardware architecture, precisely engineered to meet the demanding technical standards of Original Equipment Manufacturers (OEMs) and automated system integrators worldwide. Developed by Eilersen Electric Digital Weighing Systems A/S in Denmark—the globally leading pioneer in high-reliability digital capacitive load cell technology—the 5016OEM is distinctively built as a compact open-frame print card with enhanced channel scalability. This specialized mechanical layout empowers machine design engineers to maximize localized structural space optimization, allowing seamless integration inside narrow electrical control boxes, collaborative robotic terminals, or multi-loadcell vessel processing units, bypassing the dimensional boundaries typical of standard DIN-rail enclosed alternatives.

The definitive technological core and paramount market advantage of the Eilersen 5016OEM lies in its robust capacity to interface and synchronously process up to 16 independent digital capacitive load cells on a single circuit board. This makes it the premier solution for large-scale industrial silo networks, multi-ingredient batching stations, and extensive weighing operations where centralized diagnostics are crucial. Powered by a next-generation high-speed central processing unit paired with immense internal measurement resolution, it brings outstanding fidelity to dynamic real-time process weighing loops. In modern, high-throughput manufacturing lines—such as dynamic inline checkweighers sorting hundreds of products per minute or high-velocity liquid batching valves—high-amplitude mechanical vibrations and material fluid kinetic shocks impose heavy disturbances on measurement sensors. The 5016OEM module thoroughly counteracts these operational anomalies via integrated, advanced digital filtering algorithms that actively isolate and mathematically suppress high-frequency mechanical noise, ensuring that the transmitted weight metrics reach instantaneous stability and absolute fidelity. Functioning as a high-performance network interface gateway, the board provides flexible connectivity through Eilersen’s modular fieldbus extensions, facilitating synchronous data transmission across industrial fieldbus networks including Profinet, EtherCAT, EtherNet/IP, Modbus TCP, and Profibus to centralized plant PLCs. Furthermore, its intelligent localized system diagnostics feature enables operators to remotely monitor the real-time health status of every independent capacitive load cell within the loop, significantly streamlining predictive maintenance protocols, preventing sudden equipment down-time, and guaranteeing uninterrupted 24/7 continuous operations at maximum capacity.

• Manufacturer: Eilersen Electric Digital Weighing Systems A/S
• Country of Origin: Denmark
• Product Category: High-Capacity OEM Digital Weighing Interface & Conversion Card
• Model Designation: 5016OEM
• Measurement Principle: High-resolution electronic digitization of capacitive networks from Eilersen digital load cells
• Load Cell Interfacing Capacity: Supports parallel connection and individual management for up to 16 independent Eilersen digital load cells
• Internal Processing & Sampling Rate: Ultra-high speed data acquisition optimized for heavy-duty real-time dynamic weighing and high-throughput checkweighers
• Noise Suppression Matrix: Advanced integrated adaptive digital filters suppressing high-frequency mechanical vibration and fluid dynamics
• Network Interfacing Compatibility: Supports modular connectivity through Eilersen external fieldbus interface modules (Profinet, EtherCAT, EtherNet/IP, Modbus TCP, Profibus, etc.)
• System Diagnostics: Automatic localized monitoring, detection, and failure alarming for each independent load cell node remotely
• Mounting Architecture: Open-frame print card (OEM board) configured with integrated mounting holes for panel or chassis installation
• Interfacing Layout: Standardized industrial header pin layouts or terminal block connections ensuring high-vibration structural integrity
• Quality Compliances: CE marked, fully certified under heavy industrial Electromagnetic Compatibility (EMC) regulations
• Operating Power Threshold: 24Vdc ± 10% standardized industrial automation power input
