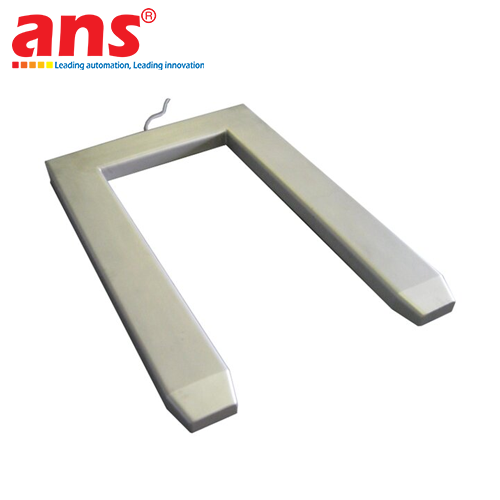

The Eilersen High-Capacity Heavy-Duty U-Frame Digital Pallet Scales System represents the absolute pinnacle of flexible process measurement engineering and exceptional mechanical robustness within the mobile industrial weighing sector. Meticulously researched, extensively verified, and manufactured by Eilersen Electric Digital Weighing Systems A/S in Denmark—the globally acclaimed technological leader and pioneer in high-reliability digital load cell configurations based on proprietary capacitive principles—the Pallet U Scales series is specifically engineered to optimize floor workflows. Its distinct U-shaped geometric design is mathematically configured to allow standard hand pallet jacks or heavy forklifts to roll directly into the center core of the scale structure and lower the palletized material load onto the frame effortlessly. This completely bypasses the requirement for executing expensive under-floor pit excavations or installing space-consuming structural access ramps, maximizing localized warehouse square footage and accelerating total logistics throughput.

The core technological supremacy that establishes the market dominance of Eilersen Pallet U Scales over traditional strain-gauge analog scales resides in its solid-state mechanical composition, containing absolutely no moving internal elements or contact pins inside the capacitive digital load cells. This ultra-rigid layout empowers the U-frame assembly to demonstrate unmatched mechanical safety criteria against heavy dynamic force impacts—safely enduring structural overloads from 500% up to 1000% of the nominal rated capacities without losing measurement linearity, shifting calibration baselines, or fracturing localized micro-components. In fast-paced material handling centers, aggressive pallet jack maneuverings, high-velocity frame collisions, and off-center impact loading are daily operational occurrences; the capacitive design ensures continuous functional longevity under these harsh parameters where strain-gauge options fail immediately. The entire U-shaped chassis is fabricated from thick-gauge high-strength carbon steel with industrial coatings or elite marine-grade stainless steel (AISI 304 / AISI 316L options) electropolished to satisfy strict global Hygienic Design guidelines. It features complete hermetic laser-welded sealing that fulfills extensive IP68 and IP69K ingress protection ratings, enabling the scale system to endure aggressive daily high-pressure, high-temperature heated water washdowns integrated with chemical sanitizing agents (CIP/SIP loops) without moisture ingress risks.

Furthermore, factory-calibrated digital weight strings are communicated through high-durability mechanical armored coaxial cabling directly to the safe-area control cabinet, completely omitting the requirement of complex localized electrical junction boxes. This digital architectural configuration achieves absolute immunity against localized electromagnetic field interferences (EMI/RFI) emitted by industrial high-power motors or adjacent variable frequency drives (VFDs), and possesses the unique property to withstand heavy industrial welding currents passing through the scale structure without circuit burnout. The system interfaces smoothly with Eilersen's industrial fieldbus extensions, facilitating real-time synchronous data integration across industrial networks including Profinet, EtherCAT, EtherNet/IP, and Modbus TCP to centralized plant PLCs. Investing in the Eilersen U-Frame Pallet Scales System is the premier technical choice for advanced processing sites to satisfying corporate GMP/HACCP cleanliness benchmarks, completely eliminate routine calibration overhead expenditures, and guarantee continuous 24/7 automated manufacturing uptime.

• Manufacturer: Eilersen Electric Digital Weighing Systems A/S
• Country of Origin: Denmark
• Product Category: High-Capacity Digital Industrial U-Frame Pallet Scales System
• Core Measurement Technology: Proprietary Eilersen digital capacitive load cell framework (Solid-state instrumentation architecture)
• Safety Overload Protection Margin: Immense mechanical defense parameters safely sustaining 500% to 1000% of nominal rated capacities without linearity shifting
• External Mechanical Resilience: Complete tolerance against aggressive lateral side-loads, twisting forklift collisions, and industrial welding currents
• Structural Platform Material: Heavy-duty coated industrial carbon steel or premium medical-grade AISI 304 / marine-grade AISI 316L stainless steel (Hygienic Design compliant)
• Environmental Ingress Protection: Hermetically sealed to IP68 (Continuous deep-water submersion resilient) and IP69K (High-pressure heated jet washdowns up to +80°C tolerant)
• Data Output Scheme: Low-energy factory-calibrated digital strings providing absolute Electromagnetic Compatibility (EMC/EMI) immunity
• Cabling Interfacing Matrix: High-durability mechanical coaxial cabling supporting true Plug-and-Play parameters without junction boxes reaching up to 100 meters transmission lines
• Automation Interfacing Scope: Direct data linking via Eilersen industrial Fieldbus/Ethernet gateways (Profinet, EtherCAT, EtherNet/IP, Modbus TCP, Profibus DP) to central plant PLCs
• Nominal Load Capacity Configurations: Highly flexible options accommodating nominal capacities of 500kg, 1000kg, 1500kg, 2000kg, up to 3000kg based on process requirements
• Standard Geometric Footprint Dimensions: Standard external sizing footprint of 1200x840mm (Optimized for Euro-Pallets specifications) with an ultra-low structural clearance profile for smooth pallet jack entry
• Metrological Quality Frameworks: CE marked, OIML certified (Legal for Trade metrology benchmarks), fully compliant with stringent European industrial regulations
