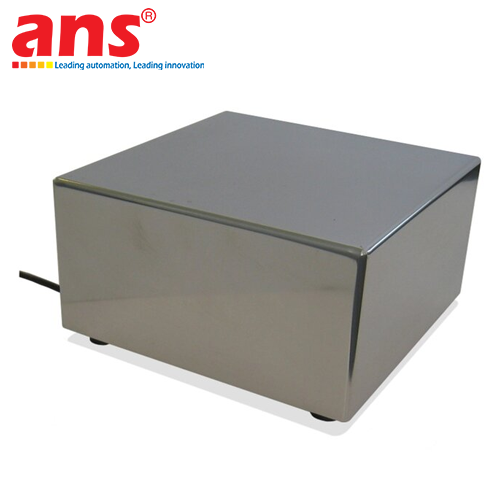

The Eilersen Explosion-Proof Digital Capacitive ATEX Scales System represents the absolute pinnacle of industrial measurement engineering and high-security operation available on the global market. The system is rigorously researched, meticulously tested, and manufactured by the legendary Eilersen Electric Digital Weighing Systems A/S in Denmark—the globally acclaimed pioneer and market leader in high-reliability digital load cell solutions operating on proprietary capacitive principles. The ATEX Scales architecture is custom-engineered to execute seamless continuous data acquisition and sustain absolute operational safety inside industrial Hazardous Areas, where explosive gas atmospheres, toxic volatile solvent vapors, or highly combustible organic dust particles are routinely present. Securing comprehensive international compliance certifications including ATEX and IECEx directives for classification sectors Zone 1, Zone 2 (Gas environments) and Zone 21, Zone 22 (Dust environments), this Eilersen weighing infrastructure stands as an irreplaceable benchmark for critical process automation applications.

The core technological supremacy of Eilersen ATEX Scales compared to conventional analog explosion-proof weighing loops resides in its uniquely configured Intrinsically Safe digital signal grid. Utilizing advanced proprietary capacitive properties, Eilersen digital load cells operate under exceptionally low power consumption thresholds while generating high-amplitude output signals digitized immediately inside the sensor's solid-state internal enclosure. This structural layout provides immense technical and economic advantages: the complete Eilersen ATEX weighing node can interface directly with localized interface modules located in the safe factory area via standard heavy-duty coaxial cabling spanning hundreds of meters WITHOUT requiring the installation of expensive and complex safety isolation barriers (Zener Barriers or Galvanic Isolators) typical of legacy analog load cells. Eliminating these barriers drastically reduces material procurement costs, maximizes control panel spaces, and completely eradicates thermal signal drift or measurement inaccuracies induced by fluctuating electrical resistance within isolated safety barriers during ambient temperature changes. The external protective housing of the system is fabricated from elite marine-grade stainless steel (AISI 316), featuring hermetic laser-welded sealing that fulfills absolute IP68 and IP69K ingress ratings, making the assembly fully resilient against harsh chemical washdowns, strong acids, and sanitizing high-pressure CIP/SIP cycles. Furthermore, the immense mechanical overload protection of capacitive engineering—safely sustaining up to 500-1000% of the nominal rated capacities—enables the Eilersen ATEX scales to seamlessly withstand heavy structural shock impacts or dynamic physical forces during aggressive raw material charging, guaranteeing uncompromised 24/7 continuous facility operations at peak production reliability.

• Manufacturer: Eilersen Electric Digital Weighing Systems A/S
• Country of Origin: Denmark
• Product Category: Digital Capacitive Explosion-Proof Weighing System (ATEX/IECEx Certified)
• Explosive Certifications Compliance: ATEX Directive 2014/34/EU and international IECEx certification framework
• Hazardous Zone Classifications: Gas Atmospheres: Zone 1 and Zone 2 (Ex ib IIC T6 Gb) | Combustible Dusts: Zone 21 and Zone 22 (Ex tb IIIC T85°C Db)
• Load Cell Core Technology: Proprietary Eilersen digital capacitive measurement framework
• Electrical Safety Scheme: Intrinsically Safe circuitry matrix, ultra-low energy signals eliminating thermal spark ignition risks
• Mechanical Housing Material: Premium high-grade AISI 304 / AISI 316 stainless steel (Electropolished corrosion-resistant options available)
• Environmental Ingress Rating: Hermetically sealed to IP68 (Continuous deep-water submersion) and IP69K (High-pressure heated washdowns tolerance)
• Mechanical Overload Threshold: Exceptional safety margins sustaining 500% to 1000% of nominal weight ratings without calibration shifting
• Cabling Transmission Range: Lossless data transmission via high-durability coaxial cabling reaching up to 100 meters to the safe control room without precision degradation
• Automation Connectivity Integration: Seamless interfacing through Eilersen standard Fieldbus modules supporting Profinet, EtherCAT, EtherNet/IP, Modbus TCP to safe-area PLCs
• Safe Operating Temperature Limits: Linear measurement precision maintained across a wide thermal range from -20°C up to +60°C
• Quality & Safety Frameworks: CE marked, fully certified under strict heavy industrial Electromagnetic Compatibility (EMC) regulations
