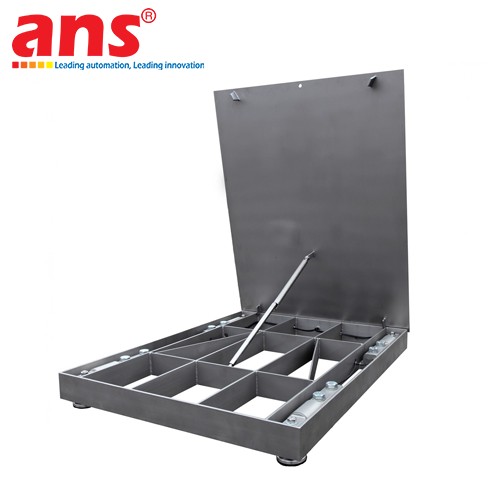

The Eilersen High-Precision Digital Capacitive Hygienic Scales System represents the absolute state-of-the-art benchmark in mechanical cleanliness and exceptional measurement fidelity within the global sanitary instrumentation sector. The system is rigorously researched, meticulously verified, and manufactured directly by Eilersen Electric Digital Weighing Systems A/S in Denmark—the globally recognized pioneer and market leader in heavy-duty digital load cell solutions utilizing proprietary capacitive principles. The Hygienic Scales series is custom-engineered to comply fully with the most demanding engineering guidelines dictated by the European Hygienic Engineering & Design Group (EHEDG), 3-A Sanitary Standards, and the United States Food and Drug Administration (FDA). This advanced weighing infrastructure functions as a critical automation gateway to completely eliminate microbial contamination hazards, ensuring uncompromised final product batch integrity inside highly sensitive dairy processing, food formulation, pharmaceutical synthesis, and biotechnology facilities.

The definitive core supremacy of Eilersen Hygienic Scales resides in its flawless execution of comprehensive "Hygienic Design" principles, spanning from the external mechanical sub-frames to the internal sensor topologies. The platform frame, structural mounts, and capacitive load cell bodies are fabricated from premium medical-grade stainless steel (AISI 316L), undergoing advanced electropolishing surface treatments to achieve an exceptionally low surface roughness rating (Ra < 0.8 µm), yielding a mirror-like finish. The entire physical layout is mathematically optimized to eradicate dead zones, mechanical crevices, exposed thread configurations, or pocket recessments—which typically serve as localized collection points for material residue, stagnation, and aggressive bacterial colonization. Utilizing solid-state capacitive technology, Eilersen digital load cells incorporate absolutely no moving parts, contact pins, or thin internal diaphragms, empowering the framework to safely endure immense structural shock impacts and mechanical overloads from 500% up to 1000% of the nominal rated capacities without altering calibration profiles. The load cells feature complete hermetic laser-welded sealing that fulfills extensive IP68 and IP69K ingress protection ratings, allowing the scale to operate seamlessly during rigorous continuous submerged conditions or endure aggressive automated Clean-In-Place (CIP) and Sterilize-In-Place (SIP) cycles using high-pressure, high-temperature hot-water jets mixed with highly concentrated acidic or alkaline sanitizing agents without moisture penetration risks.

Furthermore, factory-calibrated digital weight strings are communicated through high-durability mechanical armored coaxial cabling directly to the safe control room panel located hundreds of meters away, entirely omitting the requirement of complex physical junction boxes. This digital signal configuration achieves absolute immunity against localized electromagnetic field interferences (EMI/RFI) emitted by high-power process vessel agitators or adjacent variable frequency drives (VFDs). The system interfaces smoothly with Eilersen's industrial fieldbus extensions, facilitating real-time synchronous data integration across industrial networks including Profinet, EtherCAT, EtherNet/IP, and Modbus TCP to centralized plant PLCs. Investing in the Eilersen Hygienic Scales System is the premier technical choice for advanced enterprises to satisfy global GMP/HACCP plant directives, fully eliminate routine maintenance expenditures caused by failed strain-gauge load cells, and maximize continuous 24/7 automated manufacturing uptime.

• Manufacturer: Eilersen Electric Digital Weighing Systems A/S
• Country of Origin: Denmark
• Product Category: High-Precision Industrial Hygienic & Sanitary Weighing System
• Core Measurement Technology: Proprietary Eilersen digital capacitive load cell framework (Solid-state instrumentation)
• Compliance Certifications: Fully compliant with EHEDG design criteria, Sanitary 3-A standards, and FDA approved material guidelines
• Safety Overload Protection: Superior mechanical defense margin sustaining 500% to 1000% of nominal rated capacities without linearity drifting
• Structural System Material: Premium high-grade AISI 316 / marine-grade AISI 316L stainless steel (Electropolished surface finish Ra < 0.8 µm)
• Ingress Protection Rating: Hermetically sealed to IP68 (Continuous submersion resilient) and IP69K (High-pressure heated jet washdowns up to +80°C tolerant)
• Cleaning Protocol Resilience: Complete compatibility with aggressive automated Clean-In-Place (CIP) and high-temperature Sterilize-In-Place (SIP) processing loops
• Data Output Architecture: Low-energy factory-calibrated digital strings providing absolute Electromagnetic Compatibility (EMC/EMI) immunity
• Interfacing Cabling Matrix: High-durability mechanical coaxial cabling supporting true Plug-and-Play hot-swapping parameters without re-calibration needs
• Automation Interfacing Scope: Direct data linking via Eilersen industrial Fieldbus/Ethernet gateways (Profinet, EtherCAT, EtherNet/IP, Modbus TCP, Profibus DP) to central plant PLCs
• Linear Operating Temperature Limits: Precision micro-measurement maintained across a wide thermal range from -20°C up to +60°C
• Metrological Quality Frameworks: CE marked, OIML certified (Legal for Trade metrology benchmarks), compliant with European industrial regulations
• Nominal Load Capacity Configurations: Highly customizable scaling profiles accommodating nominal capacities from lightweight desktop metrics up to multi-ton heavy process vessel grids
