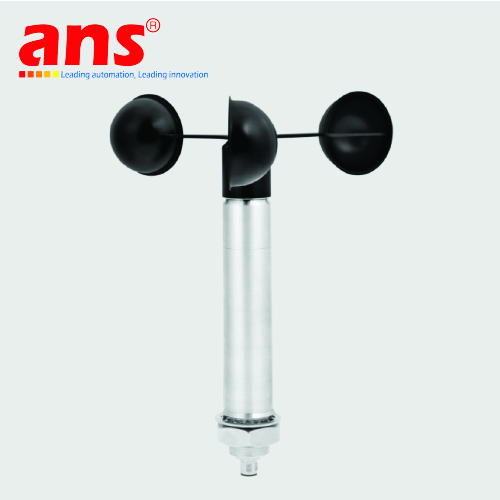

Wind speed sensor 00.14524.100040 Lambrecht Vietnam





The PRO‑WEA sensor, offered by Lambrecht meteo, delivers reliable wind speed measurements up to 60 m/s with high accuracy and durability, tailored for outdoor installation in extreme environments, including lightning-prone or marine coastal areas.


🔧 Key Specifications

  • Measuring Range: 0.5  to 60 m/s

  • Accuracy: ± 0.3 m/s at ≤10 m/s; up to ± 0.5 m/s for higher ranges

  • Resolution: ≤ 0.1 m/s

  • Startup Threshold: Below 0.5 m/s

  • Output Signal: 4…20 mA output (0…60 m/s) at 4 Hz update rate, maximum load 600 Ω

  • Supply Voltage: 24 VDC (20–28 VDC), with integrated heating (18 W), max 800 mA consumption

  • Operating Conditions: –40 °C to +70 °C (heated), up to 100% RH, able to withstand gusts up to 100 m/s Housing & Construction: Marine-grade aluminium with enhanced anti-static coating, 3‑arm cup rotor on reinforced axis, IP65 rating when upright, M12 connector

  • Weight: Approx. 0.35 kg


✅ Key Advantages

  • Ultra-Robust & Anti-Static Design
    Designed for regions prone to lightning and storms, featuring electrostatic‑discharge protection and reinforced axis components.

  • Excellent Performance in Harsh Conditions
    High resolution and low start-up threshold ensure accurate data from calm to stormy conditions. Integrated heating prevents freezing for year-round operation.

  • High Compatibility & Easy Integration
    Analog 4–20 mA output enables seamless integration into SCADA, PLC, or other control systems. Compact yet durable IP65 design ensures reliability outdoors.

  • Proven Applications
    Ideal for wind power plants, crane systems, open‑pit mining, ports, offshore installations, and industrial weather monitoring in extreme climates.
