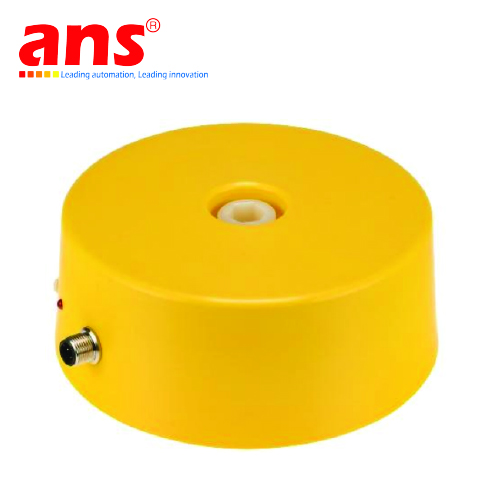

Proxitron IKO 100T.38 G S4 – High-Performance Inductive Proximity Sensor (100 mm Range)
The Proxitron IKO 100T.38 G S4 is a robust inductive proximity switch designed for non-contact detection of metallic objects at long ranges. With a rated operating distance (Sn) of 100 mm, flexible teach-in adjustment, and durable housing, this sensor is ideal for demanding automation, process control, and monitoring tasks.
🔧 Key Features & Specifications
-
Rated Operating Distance (Sn): 100 mm (target: steel plate St37 1 mm thick, 300 × 300 mm)
-
Teach-In Adjustment (Proxi-Teach): Allows adapting the operating distance to installation conditions with a single key press
-
Output Type: PNP, both Normally Open (NO) and Normally Closed (NC) outputs
-
Supply Voltage Range: 10 – 55 V DC, with up to 15 % ripple
-
Load Current: Up to 400 mA continuous
-
Electrical Protections: Short-circuit protection (pulsing) and reverse polarity protection
-
Switching Hysteresis: Adjustable, 1 % – 15 % of Sn
-
Ambient Temperature Range: –25 °C to +70 °C
-
Protection Rating: IP67 (weatherproof housing)
-
Housing & Connection: Plastic housing (Ø 163 mm) with M12 × 1 A plug S4 connector
-
Diagnostic Indicator: LED status indicator for device operation
-
Accessories: Mounting screw (polyamide), cover cap, various connection cables with S4 plugs
✅ Benefits & Competitive Advantages
-
Long detection range: 100 mm gives greater flexibility for object positioning compared to standard proximity sensors
-
Easy setup via Proxi-Teach: Adapts to changed mounting or background without manual calibration
-
Durable & protected: IP67 rating, plastic housing, and protective mounting screw design
-
Reliable in industrial conditions: Wide supply voltage range, robust protections, stable performance
-
Dual output modes: NO & NC provide flexibility in wiring to controllers and safety circuits
-
Compact and modular: M12 cable connector and standard accessories support easy integration
