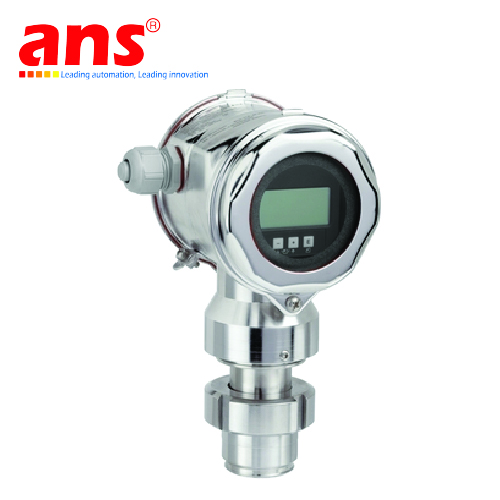

FMB70-UCA1F1200CAA FMB70-1KX4/0 Pressure sensor E+H Vietnam
.jpg)
Field of application
The Deltapilot FMB70 with the condensate resistant Contite measuring cell and two-chamber housing is typically used in the process and hygienic applications. It is made for level measurement in liquid and paste-like media in open or closed containers and unaffected by possible foam formation. The integrated HistoROM/M-DAT data module makes management of process and device parameters easy. Designed according to IEC 61508 for use in SIL3 safety systems.
For level and/or pressure measurement.
- Process connections: Threads, flanges and hygienic connections
- Temperature: –10 to +100°C (14 to 212°F) (+135°C (275°F) for 30 minutes maximum)
- Measuring range: 0.1 to 10 bar rel. (1.5 to 150 psi)
- Accuracy: ±0.075%
- International explosion protection certificates, overfill prevention WHG, SIL, hygienic certificates, marine approvals
Benefits
- Hermetically sealed Contite measuring cell with condensate-resistance, high reference accuracy: ±0.1%, optionally ±0.075% and minimum temperature effects thanks to active temperature compensation
- Best batch-to-batch repeatability and long-term stability
- Modular concept for easy replacement of display or electronics
- HistoROM/M-DAT data backup for instrument settings and measured values
- Function-monitored from the measuring cell to the electronics
- Seamless and independent system integration (HART/PA/FF)
- International usage thanks to a wide range of approvals
