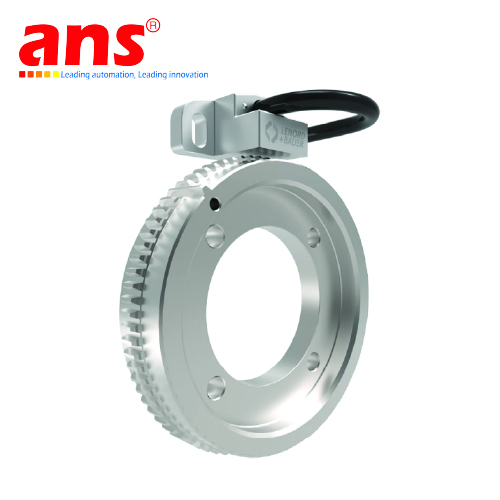

Rotational speed and position sensor 2444KZPG5K150 Lenord Bauer
Price: Contact
Brand: Lenord Bauer
Category: Sensors
Supplier: ansvietnam
Origin: Germany
Gọi lại cho tôi
0911472255Rotational speed and position sensor 2444KZPG5K150 Lenord Bauer
General
- The measuring system comprises a MiniCODER and a preci-sion target wheel for attachment to shafts.
- The MiniCODER contactlessly scans the precision target wheel using magnetoresistive sensors and provides the sig-nals direction of rotation, rotational speed and position.
Features
- Output signal level
- 1 V PP Differential signal (sin/cos) or TTL / RS422
- Square-wave differential reference signal (optional)
- Selection of interpolation factors to increase the number of pulses per revolution possible (TTL / RS422)
- Recording of temperature and rotational speed histogram and automatic calibration possible
- Frequency range from 0 to 200 kHz (1) (sin/cos) or 0 to 500 kHz (1) (TTL/RS422)
- Temperature range - 40 deg * C to 120 deg * C
- Degree of protection IP 68
- Safety integrated certificate (signal pattern K)
Advantages
- Maintenance and wear-free
- Low temperature drift and high signal quality
- Highest immunity to interference due to fully screened metal housing
- Customized production of precision target wheels enables flexible integration into a wide variety of designs.
Field of application
- Machine tool engineering
- -HSC spindles (High Speed Cutting)
- Screw spindles in vacuum pumps
- Lathes, grinding and milling machines
- Test stands and motors (hybrid drives, torque motors)
