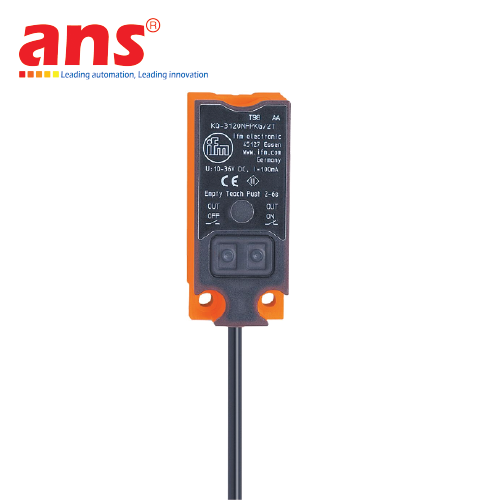

Capacitive sensor KQ6006
KQ-3120NFNKG/2T
- Output function normally open / normally closed programmable
- Clearly visible indication of the switching status by LED
- Easy installation with mounting adapters and cable ties
- For position detection or level monitoring
Product characteristics
- Electrical design NPN
- Output function normally open / normally closed; (selectable)
- Sensing range[mm] 12
- Communication interface IO-Link
- Housing rectangular
- Dimensions[mm] 20 x 14 x 48
Application
- Installation detection through non-metallic container wall or on bypass pipes
- Media dry bulk material; liquids
Electrical data
- Operating voltage[V] 10...30 DC
- Current consumption[mA] < 17
- Protection class III
- Reverse polarity protection yes
- Measuring principle capacitive
