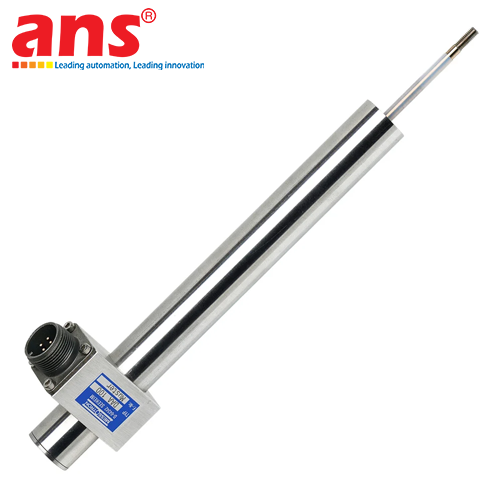

The Messotron DAA and DAE Series Linear Inductive Displacement Transducers (LVDT) represent a high-end, heavy-duty solution for position and mechanical stroke monitoring, engineered and manufactured to the highest technical benchmarks in Germany. Operating on the trusted Linear Variable Differential Transformer (LVDT) concept paired with optional integrated electronic architectures, these instruments provide absolute measurement accuracy across broad linear motion scales from 50mm up to 1000mm (1 meter). The key technical asset distinguishing the Messotron DAA/DAE series from standard resistive potentiometers is the friction-free, non-contact structural composition between the freely moving internal magnetic core and the stationary stator winding block. By eliminating physical contact, mechanical degradation and element wear are fully avoided, maintaining a stable measurement linearity over time and delivering a near-infinite runtime lifespan under severe production schedules.

The essential technical variation between the two sensor families lies in their signal processing and data transmission methodology to interface with supervisory automation nodes:
- The DAA Series features integrated electronic conditioning circuitry embedded directly within the sensor cylindrical shell. This architecture smoothly transforms internal inductive signals into standardized industrial electronic outputs, such as 4-20mA current loops or 0-10V / 0.5-4.5V voltage outputs. This configuration optimizes cabling networks, simplifies multi-channel junction blocks, and drastically curbs signal attenuation across long-distance cable conduits.
- The DAE Series represents a raw AC operational family (unconditioned output signals) requiring an external signal conditioner module. This configuration is exceptionally optimized for industrial processes exhibiting severe mechanical vibrations or ultra-high thermal dynamics where onboard internal micro-electronics could suffer premature operational degradation.

The structural frame of both DAA and DAE sensors is encased in heavy-gauge, corrosion-resistant stainless steel housings, hermetically sealed to comply with stringent IP65 to IP67 ingress protection metrics. This robust mechanical shield ensures total immunity against abrasive cement particulates, high-pressure industrial fluid spraying, ambient humidity, and severe mechanical shocks from nearby machinery matrices. These sensors are widely deployed as primary technical components for tracking high-temperature steel roller systems, regulating giant hydraulic actuators, maintaining robotic arms inside shipyard applications, and operating main control gates in hydroelectric dam installations. Investing in Messotron DAA/DAE sensors is the premier technical choice for industrial facilities looking to maintain uninterrupted operational lines and maximize complete machinery runtime safety parameters.

• Manufacturer: Messotron
• Country of Origin: Germany
• Product Category: Long-Stroke Inductive Linear Displacement Transducers (LVDT)
• Consolidated System Model Registries:
  - Integrated Electronic Amplifier Variant: Messotron DAA 50, DAA 100, DAA 150, DAA 200, DAA 250, DAA 300, DAA 400, DAA 500, DAA 600, DAA 800, DAA 1000.
  - Raw AC Output Signal Variant: Messotron DAE 50, DAE 100, DAE 150, DAE 200, DAE 250, DAE 300, DAE 400, DAE 500, DAE 600, DAE 800, DAE 1000.
• Operating Principle: Linear Variable Differential Transformer - Mechanical frictionless non-contact tracking
• Linear Measurement Strokes per Model Designation: 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 400mm, 500mm, 600mm, 800mm, 1000mm (1 Meter travel capacity).
• Electronic Interface Terminations (Output Signals):
  - DAA Variants: Onboard integrated module delivering 0-10 VDC, 4-20 mA, or ±5 VDC
  - DAE Variants: Raw alternating current AC output (Requires external amplifier conditioning equipment)
• Linearity Deviation Factor: Ultra-tight tolerance standard of ≤ ±0.25% to ±0.5% across the total operational displacement travel
• Ingress Protection Compliance: Standard IP65 or IP67 protection classes (Hermetically sealed assembly execution)
• Shell Material Matrix: High-grade stainless steel engineered for optimal mechanical ruggedness and chemical corrosion resistance
• Maximum Operating Temperature Thresholds:
  - DAA Variants (Onboard electronics): -20°C to +85°C
  - DAE Variants (Raw AC execution): Extended tolerance from -40°C to +120°C (Higher options available under specialized configurations)
• Electrical Connectivity Layout: Industrial heavy-duty M12/Multi-pin connection blocks or integrated shielded molded cables
• Optional Mounting Hardware Accessories: Spherical rod ends, rigid sensor mounting blocks, independent moving core extensions
