The Emerson Type: PR6424/010-040 Eddy Current Sensor (Displacement Sensor) is a premium, non-contact microelectronic measuring instrument engineered to play a critical and central safety role within modern predictive maintenance networks and automated Turbine Supervisory Instrumentation (TSI) setups. Developed utilizing the advanced engineering heritage of the epro product framework under the global Emerson umbrella, this heavy-duty proximity sensor is custom-tailored for detecting vital dynamic parameters including relative radial shaft vibration, thermal axial position displacement tracking, and the microscopic oil film clearance fluctuations inside heavy journal bearings. The sensor operates flawlessly based on the inductive eddy current principle: when high-frequency electrical currents from a matching driver energize the coil inside the probe tip, a symmetric alternating magnetic field is projected; any displacement of the conductive target metal surface (rotating machine shaft) within this magnetic field cross-section induces localized Foucault currents (eddy currents), modifying the loop impedance which is subsequently translated by a corresponding signal converter into highly linear, microsecond-accurate physical distance metrics.

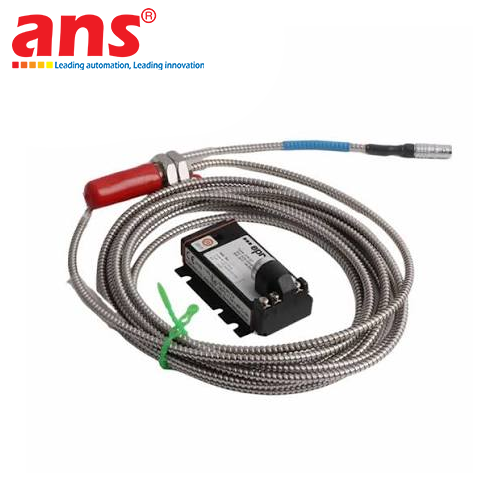

The specific technical hardware configuration of the Emerson PR6424/010-040 model incorporates a heavy-duty 16mm sensor tip diameter (ECS 16MM), providing an exceptionally expanded linear measurement range compared to standard 8mm proximity probes, which makes it highly optimized for large-diameter industrial shafts with large vibration amplitudes. The sensor body features a rugged M18x1.5 standard metric thread profile coupled with an integrated rigid smooth sleeve with a length of 45mm (40mm Sleeve), facilitating solid and secure mounting through deep bearing pedestal adapters to fully eliminate reading distortions caused by structural casing background vibrations. The ultimate architectural highlight of this hardware variation lies in its continuous 10-meter integral sensor cable completely enclosed within a flexible stainless steel protective armor conduit (Armor). In hostile under-turbine environments—heavily polluted with high-pressure lubrication oil mists, intense thermal radiation, and mechanical shear hazards—the robust steel armor prevents cable crimping, tearing, or premature degradation while executing absolute immunity against external electromagnetic interferences (EMI/RFI). The terminal end uses a premium gold-plated LEMO quick-coupling connector, drastically reducing high-frequency signal attenuation and preserving the flawless data integrity of telemetry loops routed to central analysis networks like the Emerson AMS 6500 Machinery Health Monitor. Implementing genuine Emerson PR6424 probes represents a strategic decision for industrial operators looking to secure continuous 24/7 uptime, mitigate severe turbine blade rub-over risks, and maximize industrial plant safety lifespans.

• Manufacturer: Emerson (Premium inductive telemetry and epro sensor framework)
• Type Model Identifier: PR6424/010-040
• Measurement Principle: Non-contact inductive eddy current method
• Sensor Tip Diameter Size: 16 mm (ECS 16MM)
• Thread Technical Profile: Metric M18x1.5 standard thread
• Rigid Smooth Sleeve Length: 40 mm
• Cable Protective Substrate: Heavy-duty stainless steel flexible protective armor (Armor) against mechanical shear and oil ingress
• Total Cable Length Configuration: 10 meters (10M CAB) continuous integral cable
• Interface Connector Typology: High-performance co-axial LEMO quick-coupling terminal with optimized gold-plated pins
• Standard Measurement Target Material: Ferromagnetic or conductive metal surfaces (Standardized for 42CrMo4 steel or equivalent targets)
• Typical Linear Measuring Stroke: Extended range, typically 4 mm to 8 mm (Dependent on the matched CONxxx driver module setup)
• System Integration Interconnectivity: Fully unified with the AMS 6500 machinery protection framework and standard CON021 / CON041 signal converters
• Structural Protection Rating: Hermetically sealed probe architecture resistant to high-pressure oil mist, steam ingress, and harsh chemical washes
• Ambient Operating Temperature Envelope: Broad working spectrum from -35°C up to +150°C, custom-engineered for harsh internal machine fields
• Country of Origin: Germany
