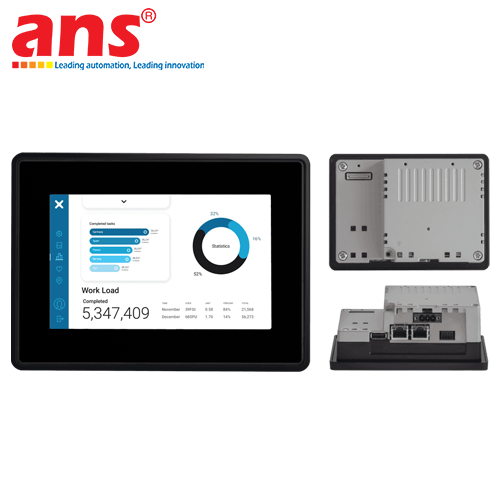

The EXOR Oceania eX705M Industrial HMI Touch Panel (part of the flagship eX700M Marine Series) is a next-generation human-machine interface designed to exceed standard industrial requirements, specifically optimized for marine applications, offshore rigs, and harsh industrial automation environments. Manufactured by EXOR International (Italy) and distributed by EXOR Oceania, the eX705M perfectly blends powerful processing performance, vivid display clarity, and cutting-edge IIoT connectivity.

Featuring a 5.0-inch WVGA (800x480 pixels) widescreen color display, the eX705M incorporates Projected Capacitive (PCAP) multi-touch technology with a rugged glass front. Designed with Optical Bonding technology, it minimizes internal light reflections to ensure brilliant sunlight readability in outdoor marine bridge or deck environments. The unit holds full Type Approvals from major marine classification societies including DNV-GL, Lloyd's Register, ABS, Bureau Veritas, and RINA.

Underneath its rugged enclosure, the EXOR eX705M is powered by a high-performance ARM Cortex-A9 Dual-Core processor, 2GB RAM, and 8GB Flash memory running on a real-time Linux operating system. It boasts exceptional network flexibility with 3 independent 10/100 Mbit Ethernet ports (supporting network separation for OT/IT security and integrated switch/router capabilities), software-configurable RS-232/422/485 serial ports, USB Host, and an SD Card slot.

Pre-loaded with JMobile Runtime, the eX705M supports advanced vector graphics, over 200 industrial PLC communication protocols, OPC UA Server/Client (Pub/Sub), MQTT gateway capabilities, and Corvina Cloud connectivity. Protected by an IP66 front panel and engineered for an extended operating temperature range from -20°C to +60°C, the eX705M is the ultimate compact HMI solution for modern maritime and industrial automation systems.

• Manufacturer: EXOR International / EXOR Oceania
• Product Line: Industrial & Marine HMI Touch Panels (eX700M Series)
• Model Reference: eX705M
• Display Size: 5.0 inches (16:9 aspect ratio)
• Display Technology: TFT Color LCD, 16.7M colors
• Resolution: 800 x 480 pixels (WVGA)
• Touchscreen Technology: Projected Capacitive (PCAP) Multi-touch glass front
• Backlight / Brightness: LED / 500 cd/m² (Dimming 0 - 100%)
• Optical Bonding: Yes (Sunlight readable, anti-glare)
• Processor (CPU): ARM Cortex-A9 Dual-Core 800 MHz
• Memory: RAM 2 GB | Flash Disk 8 GB
• Operating System: Linux RT
• Ethernet Ports: 3 x 10/100 Mbit (Integrated Bridge/Routing functionality)
• Serial Port: 1 x RS-232/422/485 (Software configurable)
• USB Port: 1 x USB 2.0 Host
• Expansion Slot: 1 x SD Card slot
• Software / Runtime: JMobile Runtime (Supports OPC UA, MQTT, CODESYS V3 SoftPLC)
• Power Supply Voltage: 24V DC (Operating range 10 - 32V DC)
• Front Panel Protection: IP66 (UV resistant, dust-tight, hose water proof)
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -20°C to +70°C
• Operating Humidity: 5 - 85% RH (Non-condensing)
• Certifications & Marine Approvals: DNV-GL, ABS, BV, LR, RINA, CE, cULus Class I Div 2, ATEX Zone 2/22
• Panel Cutout Dimensions: 136 x 96 mm
• Overall Dimensions (W x H x D): 147 x 107 x 47 mm
• Net Weight: ~0.9 kg
