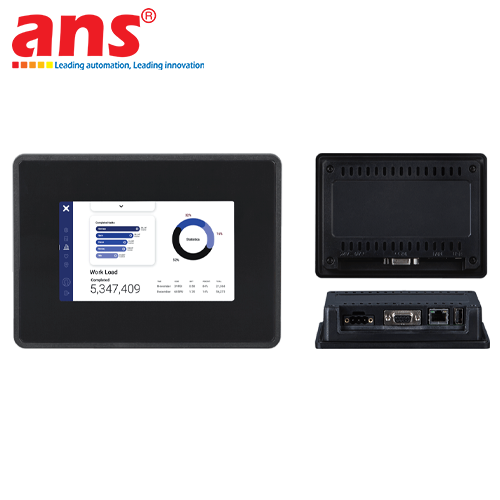

The EXOR Oceania eSMART04M Industrial HMI Touch Panel (part of the eSMART Marine Series) is a compact 4.3-inch widescreen human-machine interface designed to combine high efficiency, cost optimization, and full Marine Type Approvals. Engineered and manufactured by EXOR International (Italy) and distributed by EXOR Oceania, the eSMART04M is an excellent choice for space-constrained maritime control cabinets, vessel monitoring, and demanding industrial OEM equipment.

Featuring a 4.3-inch WQVGA (480x272 pixels) widescreen color display with 64K colors and a rugged industrial resistive touchscreen, the eSMART04M provides reliable operator interaction in demanding environments. Sealed to IP66 on the front panel, it effectively withstands water spray, dust accumulation, and harsh ambient conditions typical of marine and offshore applications.

Underneath its compact footprint, the EXOR eSMART04M is powered by an ARM Cortex-A8 1.0 GHz processor, 512MB RAM, and 4GB Flash memory running on a real-time Linux operating system. Connectivity options include 1 x 10/100 Mbit Ethernet port, software-configurable RS-232/422/485 serial communication, and a USB 2.0 Host port for convenient data logging or system updates.

Pre-loaded with EXOR's JMobile Runtime software, the eSMART04M supports vector graphics, over 200 industrial PLC communication protocols (Siemens, Mitsubishi, Omron, Schneider, ABB, etc.), OPC UA Server/Client, MQTT gateway capabilities, and Corvina Cloud connectivity. The unit holds major marine certifications including DNV-GL, Lloyd's Register, ABS, Bureau Veritas, and RINA.

• Manufacturer: EXOR International / EXOR Oceania
• Product Line: Compact Industrial & Marine HMI Touch Panels (eSMART Series)
• Model Reference: eSMART04M
• Display Size: 4.3 inches (16:9 aspect ratio)
• Display Technology: TFT Color LCD, 64K colors
• Resolution: 480 x 272 pixels (WQVGA)
• Touchscreen Technology: Industrial Resistive Touchscreen
• Backlight / Brightness: LED / 200 cd/m² (Dimming 0 - 100%)
• Processor (CPU): ARM Cortex-A8 1.0 GHz
• Memory: RAM 512 MB | Flash Disk 4 GB
• Operating System: Linux RT
• Ethernet Port: 1 x 10/100 Mbit
• Serial Port: 1 x RS-232/422/485 (Software configurable)
• USB Port: 1 x USB 2.0 Host
• Software / Runtime: JMobile Runtime (Supports OPC UA, MQTT, CODESYS V3 SoftPLC)
• Power Supply Voltage: 24V DC (Operating range 10 - 32V DC)
• Front Panel Protection: IP66 (UV resistant, dust-tight, hose water proof)
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -20°C to +70°C
• Operating Humidity: 5 - 85% RH (Non-condensing)
• Certifications & Marine Approvals: DNV-GL, ABS, BV, LR, RINA, CE, cULus Class I Div 2, ATEX Zone 2/22, IECEx Zone 2/22
• Panel Cutout Dimensions: 130 x 88 mm
• Overall Dimensions (W x H x D): 147 x 107 x 29 mm
• Net Weight: ~0.6 kg
