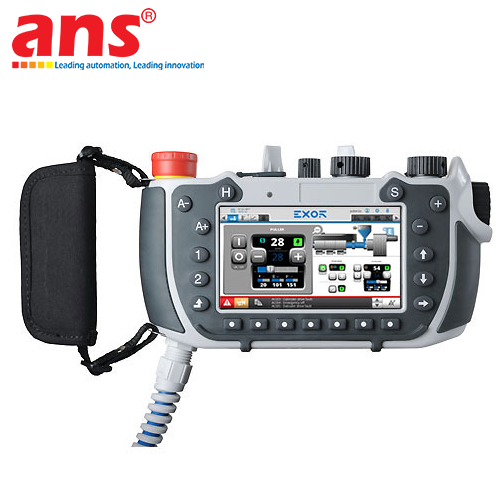

The EXOR H3 Handheld Touchscreen HMI (Handheld H3 Series) is an advanced mobile Human-Machine Interface solution developed by EXOR International (Italy). Purpose-built for operational tasks requiring field engineers to maneuver freely around machinery, robotic cells, or complex production lines, the EXOR H3 seamlessly merges mobile ergonomics, crisp graphical visualization, and rigorous industrial safety compliance.

Designed for extreme field durability, the EXOR H3 features a lightweight, ergonomically molded industrial enclosure rated at IP65 for dust and water resistance. It is engineered to withstand accidental drops from heights up to 1.5 meters onto concrete floors without compromising internal electronics. The high-resolution TFT color display (supporting 64K rich colors) ensures optimal readability and precise touch responsiveness directly at the machine site.

A defining feature of the EXOR H3 handheld series is its embedded, certified safety hardware. The unit integrates an SIL 3 / PL e compliant Emergency Stop (E-Stop) mushroom button, a 3-position enabling switch (deadman switch), and optional key selector switches. These safety elements provide immediate circuit interruption during critical events, offering uncompromised protection to operators during manual teaching, mold alignment, or robot commissioning (Teach Pendant mode).

Powered by a high-performance processor and generous onboard memory, the EXOR H3 runs natively on EXOR’s JMobile Studio software environment. It communicates via heavy-duty industrial umbilical cables carrying Ethernet 10/100, Serial RS-232/RS-485, and USB signals, offering plug-and-play driver support for leading PLCs and motion controllers from Siemens, Mitsubishi, Omron, Schneider Electric, ABB, Fanuc, Yaskawa, and KUKA. Combining mobility, ruggedness, and functional safety, the EXOR H3 is the premier choice for robot system integrators, CNC machine builders, and automated assembly line operators.

• Manufacturer: EXOR International
• Product Line: Handheld H3 Series
• Model: EXOR H3 (Handheld H3)
• Device Category: Mobile Handheld Touchscreen HMI Terminal
• Display Panel: TFT Color Display (64K colors)
• Screen Size: 4.3 inch / 7.0 inch Widescreen (depending on model variant)
• Resolution: 480 x 272 pixels / 800 x 480 pixels
• Touchscreen Technology: Industrial Resistive Touch
• Integrated Safety Features:
  - 1 x Emergency Stop Button (SIL 3 / PL e compliant)
  - 1 x 3-Position Enabling Switch (Deadman Switch)
  - Key Selector Switch (Optional)
• Enclosure & Protection: Rugged industrial impact-resistant housing, IP65 rated, drop resistant up to 1.5 m
• Cable Length options: Heavy-duty umbilical industrial cable (5m, 10m, 15m, 20m) with quick disconnect connector
• Communication Interfaces:
  - 1 x Ethernet 10/100 Mbit
  - 1 x Serial RS-232 / RS-422 / RS-485
  - 1 x USB Host
• Processor (CPU): High-speed ARM Processor
• Onboard Memory: Flash Memory & RAM optimized for JMobile graphics
• Programming Software: JMobile Studio
• Power Supply Voltage: 24 VDC
• Operating Temperature: 0°C to +45°C
• Certifications: CE, cULus, SIL 3 / PL e (safety circuits)
