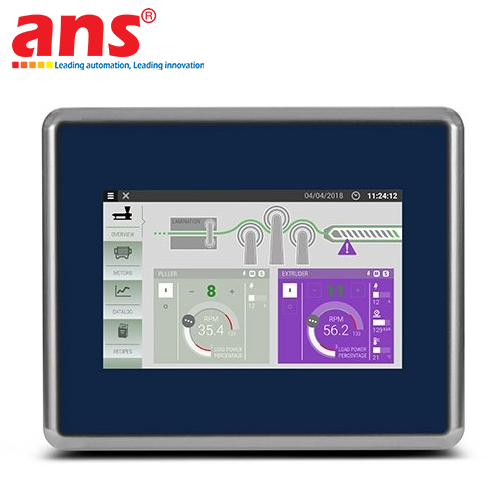

The EXOR eTOP507MFB Touchscreen HMI is a specialized 7-inch Human-Machine Interface panel from the flagship eTOP500 Series by EXOR International (Italy). Specifically engineered for demanding industrial sectors requiring stringent hygienic compliance, high mechanical resistance, and washdown capability, this unit excels in Food & Beverage processing, pharmaceuticals, chemical manufacturing, and automated packaging systems.

In terms of display design, the eTOP507MFB features a 7.0-inch TFT widescreen (16:9 ratio) display with WVGA resolution (800 x 480 pixels) and 64K vibrant colors. The front fascia utilizes a seamless glass panel (Glass Front Panel) that resists scratches, impacts, and aggressive chemical cleaning agents. Rated at IP69K/IP66 and NEMA 4X, the front panel tolerates high-pressure, high-temperature washdowns and dust-heavy environments effortlessly. The industrial-grade touchscreen allows precise operator interaction even when wearing heavy protective gloves.

Underneath, the device is powered by a high-performance 1 GHz ARM Cortex-A8 processor accompanied by 256MB RAM and 256MB Flash memory, delivering swift screen navigation, real-time data processing, and extensive alarm history logging. The eTOP507MFB natively runs EXOR's JMobile Studio environment, providing over 200 communication protocols for seamless integration with major PLCs including Siemens, Omron, Mitsubishi, Schneider Electric, ABB, and Rockwell Automation.

Connectivity options are extensive, featuring dual 10/100 Mbps Ethernet ports (supporting separate IP configurations for network segregation), a multi-protocol Serial port (RS-232/RS-422/RS-485), two USB Host 2.0 ports, an SD card slot, and two Option Plugin Slots for Fieldbus expansion modules (CANopen, Profibus DP, DeviceNet, EtherCAT). Certified under CE, cULus, ATEX Zone 2/22, and DNV-GL marine standards, the EXOR eTOP507MFB represents a top-tier HMI solution for system integrators and modern industrial plants.

• Manufacturer: EXOR International
• Product Line: eTOP500 Series
• Model: eTOP507MFB
• Display Size: 7.0 inch TFT Widescreen (16:9)
• Resolution: 800 x 480 pixels (WVGA)
• Display Colors: 64K
• Touchscreen Technology: Industrial Glass Front Touch
• Backlight: LED (Lifetime up to 50,000 hours)
• CPU Processor: ARM Cortex-A8 1 GHz
• Flash Memory: 256 MB
• RAM Memory: 256 MB
• Communication Interfaces:
  - 2 x Ethernet 10/100 Mbit ports (Separate IP support)
  - 1 x Serial Port (RS-232 / RS-422 / RS-485)
  - 2 x USB Host ports (v2.0)
  - 1 x SD Card Slot
  - 2 x Option Plugin Slots (for Fieldbus modules: Profibus, CANopen, DeviceNet, etc.)
• Programming Software: JMobile Studio
• Operating Voltage: 24 VDC (10.5 to 32 VDC range)
• Protection Class: IP69K / IP66 (front panel), NEMA 4X
• Operating Temperature: 0°C to +50°C
• Certifications: CE, cULus, ATEX Zone 2/22, DNV-GL (Marine)
