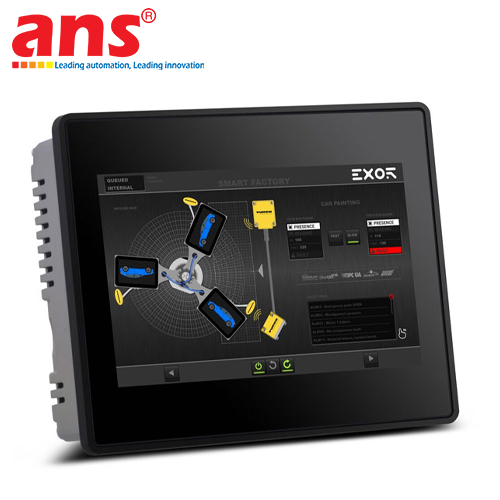

The EXOR eTOP507G Touchscreen HMI is a premium 7-inch Human-Machine Interface panel belonging to the flagship eTOP500 Series by EXOR International (Italy). The "G" designation stands for its true-flat glass front design, combining elegant modern aesthetics with rugged industrial durability required for challenging operational environments.

Engineered for superior visual performance, the eTOP507G features a 7.0-inch TFT widescreen (16:9 ratio) display with WVGA resolution (800 x 480 pixels) and 64K rich color output. The scratch-resistant, heavy-duty glass front panel protects against mechanical impacts, harsh cleaning agents, and chemical splashes. With an IP69K/IP66 and NEMA 4X front panel rating, the unit endures high-pressure, high-temperature washdowns effortlessly, making it the ideal choice for hygienic application domains such as Food & Beverage, pharmaceuticals, and cleanroom installations.

Driven by a high-performance 1 GHz ARM Cortex-A8 processor alongside 256MB RAM and 256MB Flash memory, the eTOP507G delivers swift graphic rendering, real-time data processing, and reliable historical alarm logging. It runs natively on EXOR's JMobile Studio software environment, which embeds over 200 communication protocols for seamless plug-and-play integration with industry-leading PLCs (Siemens, Omron, Mitsubishi, Schneider Electric, ABB, Rockwell Automation, Delta, etc.).

Hardware connectivity is comprehensive and robust, offering dual 10/100 Mbps Ethernet ports (supporting separate IP networks for OT/IT isolation), a multi-protocol Serial port (RS-232/RS-422/RS-485), two USB Host 2.0 ports, an SD card slot, and two Option Plugin Slots for Fieldbus expansion modules (CANopen, Profibus DP, DeviceNet, EtherCAT). Certified under CE, cULus Class I Div. 2, ATEX Zone 2/22, and DNV-GL marine standards, the EXOR eTOP507G stands as a top-tier HMI panel for OEMs and system integrators worldwide.

• Manufacturer: EXOR International
• Product Line: eTOP500 Series
• Model: eTOP507G
• Display Size: 7.0 inch TFT Widescreen (16:9)
• Resolution: 800 x 480 pixels (WVGA)
• Display Colors: 64K
• Front Panel: True-Flat Glass Front Panel
• Touchscreen Technology: Industrial Touch
• Backlight: LED (Lifetime up to 50,000 hours)
• CPU Processor: ARM Cortex-A8 1 GHz
• Flash Memory: 256 MB
• RAM Memory: 256 MB
• Communication Interfaces:
  - 2 x Ethernet 10/100 Mbit ports (Dual independent IP support)
  - 1 x Serial Port (RS-232 / RS-422 / RS-485)
  - 2 x USB Host ports (v2.0)
  - 1 x SD Card Slot
  - 2 x Option Plugin Slots (for Fieldbus modules: Profibus, CANopen, DeviceNet, etc.)
• Programming Software: JMobile Studio
• Operating Voltage: 24 VDC (10.5 to 32 VDC range)
• Protection Class: IP69K / IP66 (front panel), NEMA 4X
• Operating Temperature: 0°C to +50°C
• Certifications: CE, cULus Class I Div. 2, ATEX Zone 2/22, DNV-GL (Marine)
