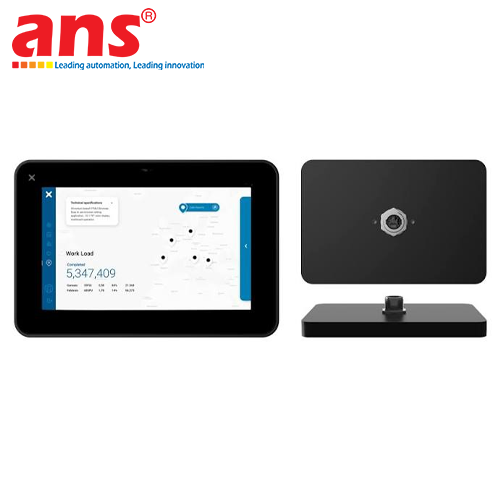

The EXOR JSmart707M Full IP67 Industrial Field HMI belongs to the groundbreaking JSmart700 Series smart display family engineered and manufactured by EXOR International (Italy). It serves as an innovative Human-Machine Interface (HMI) solution specifically developed for direct field-level automation deployments without requiring additional protective cabinets or expensive electrical enclosures. Featuring a fully sealed IP67 all-around ruggedized housing, the JSmart707M provides total protection against pressurized water jets, fine dust ingress, and chemical washdowns, ensuring uncompromised operational reliability in challenging industrial sectors such as food & beverage production, pharmaceutical processing, and automated packaging lines.

The device incorporates a high-definition 7-inch TFT color display with a resolution of 1024 x 600 pixels and projective capacitive multi-touch technology (PCAP) covered with heavy-duty glass, delivering an intuitive, responsive, and precise user experience even when operated with industrial protective gloves. A core technological highlight of the EXOR JSmart707M is its single-cable installation architecture via Power over Ethernet (PoE IEEE 802.3af/802.3at), which streamlines wiring infrastructure, minimizes installation labor expenses, and optimizes spatial footprints. Driven by a robust ARM Cortex-A9 Quad-Core processor operating on an optimized Linux RT platform, the unit comes pre-integrated with JMobile HMI runtime software, supporting a comprehensive suite of industrial communication protocols (Modbus, OPC UA, PROFINET, EtherNet/IP, CANopen) and seamless IoT cloud connectivity (CORVINA Cloud) to empower enterprises in digitizing production processes and securely monitoring field assets remotely.

• Manufacturer: EXOR International / EXOR Oceania
• Country of Origin: Italy
• Model Number: JSmart707M
• Product Line: JSmart700 Series Field HMI
• Display Size: 7 inches TFT Color (16:9 Aspect Ratio)
• Resolution: 1024 x 600 pixels (WSVGA)
• Touchscreen Type: Projective Capacitive Multi-touch (PCAP) with toughened glass
• Processor (CPU): ARM Cortex-A9 Quad-Core 800 MHz
• System Memory (RAM / Flash): 2 GB RAM / 4 GB Flash Memory
• Operating System: Linux RT
• Ingress Protection Rating: Full IP67 All-around enclosure
• Power Supply: Power over Ethernet (PoE IEEE 802.3af/802.3at) or 10-32 VDC
• Ethernet Interface: 1x 10/100 Mbit Ethernet Port (PoE Enabled)
• Wireless Connectivity (Optional): Wi-Fi / Bluetooth
• Integrated Software Suite: JMobile HMI Runtime, OPC UA Server/Client, CORVINA Cloud Ready
• Mounting Options: Support Arm mount, Pipe mount, or direct Machine Flush mount
• Operating Temperature: -20°C to +55°C
• Compliance & Certifications: CE, cULus, FCC, RCM, ATEX Zone 2/22 (Model dependent)
