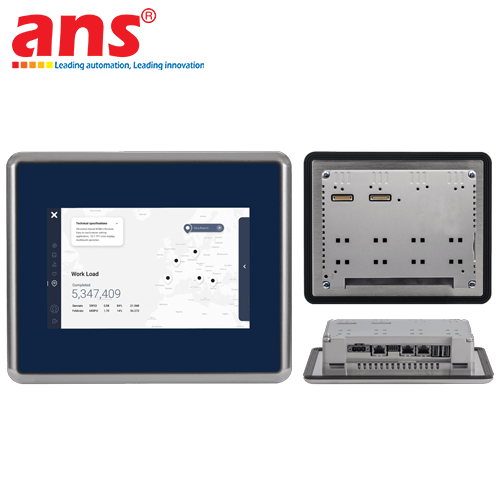

The EXOR eX707FB Industrial HMI Touch Panel is a specialized variant within the prestigious eX700 Series, engineered and manufactured by EXOR International (Italy) to strictly comply with demanding hygienic and food safety regulations (FDA / EHEDG). The "FB" designation (Food & Beverage) highlights its premium Stainless Steel 316L front bezel design combined with a completely flat, gapless glass surface. This hygienic construction withstands aggressive chemical washdowns, corrosive cleaning agents, and high-pressure, high-temperature steam cleaning rated up to IP69K ingress protection, making it the premier choice for meat processing, dairy plants, beverage bottling, pharmaceutical manufacturing, and cosmetics production.

The EXOR eX707FB features a high-resolution 7.0-inch TFT display (800 x 480 pixels) with brilliant color depth, protected by projective capacitive multi-touch (PCAP) toughened glass. The screen delivers responsive, fluid touch control even when operated by technicians wearing heavy protective gloves or working in wet, condensation-prone environments. Architecturally, the eX707FB is equipped with 3 hardware-independent 10/100 Mbit Ethernet ports, enabling complete physical Network Segmentation across OT (field PLCs), IT (plant LAN), and Cloud networks to enforce industrial cybersecurity standards (IEC 62443).

Powered by a robust ARM Cortex-A9 Quad-Core 800 MHz processor, 2 GB RAM, and 4 GB Flash memory, the EXOR eX707FB effortlessly runs both JMobile HMI Runtime software and CODESYS V3 PLC control runtime (SoftPLC). Natively integrated with CORVINA Cloud Ready architecture and supporting encrypted OPC UA Server/Client communication (Pub/Sub), the panel empowers facilities to digitize shop-floor operations, facilitating secure remote telemetry, diagnostics, and Cloud IoT integration.

• Manufacturer: EXOR International / EXOR Oceania
• Country of Origin: Italy
• Model Number: eX707FB
• Product Line: eX700 Series Food & Beverage HMI
• Display Size: 7.0 inches TFT Color (16:9 Aspect Ratio)
• Resolution: 800 x 480 pixels (WVGA)
• Display Colors: 16.7 Million Colors
• Luminance: 500 cd/m²
• Front Bezel Construction: Stainless Steel 316L (Hygienic Design EHEDG / FDA Compliant)
• Touchscreen Type: Projective Capacitive Multi-touch (PCAP) with toughened glass
• Processor (CPU): ARM Cortex-A9 Quad-Core 800 MHz
• System Memory (RAM / Flash): 2 GB RAM / 4 GB Flash Memory
• Operating System: Linux RT
• Ingress Protection Rating: IP69K Front Panel (High-pressure, high-temperature washdown) / Full IP65
• Ethernet Interfaces: 3x 10/100 Mbit Ethernet Ports (3 Independent IP Addresses)
• Serial Interface: 1x RS-232/RS-485/RS-422 (Software Configurable)
• USB Ports: 2x USB Host 2.0
• Expansion Slots: SD Card Slot, Plug-in Module slot support (Wi-Fi, 4G, CANopen, MPI)
• Integrated Software Suite: JMobile Runtime, CODESYS V3 Control (SoftPLC), OPC UA Server/Client, CORVINA Cloud Ready
• Power Supply: 24 VDC (10 to 32 VDC)
• Operating Temperature: -20°C to +60°C
• Compliance & Certifications: CE, cULus, FDA compliant, EHEDG compliant, ATEX Zone 2/22
