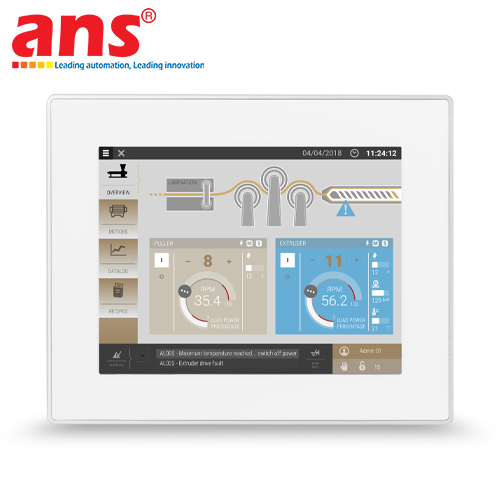

The EXOR eTOP510G Touchscreen HMI is a premium 10.4-inch Human-Machine Interface panel belonging to the flagship eTOP500 Series by EXOR International (Italy). The "G" designation features a true-flat glass front design, combining high-end modern aesthetics with extreme industrial durability required for rigorous operational environments.

Engineered for outstanding visual interface clarity, the eTOP510G boasts a 10.4-inch TFT LCD display with SVGA resolution (800 x 600 pixels) and 64K vibrant colors. The scratch-resistant, heavy-duty glass front panel protects against mechanical impacts, aggressive industrial chemicals, and corrosive cleaning solutions. Rated at IP69K/IP66 and NEMA 4X on the front fascia, the unit withstands high-pressure, high-temperature washdowns effortlessly, making it an ideal choice for hygienic installations including Food & Beverage processing, pharmaceutical production, and cleanrooms.

Driven by a high-performance 1 GHz ARM Cortex-A8 processor alongside 256MB RAM and 256MB Flash memory, the eTOP510G delivers smooth vector graphic rendering, real-time data processing, and extensive historical alarm/event logging. The device runs natively on EXOR's proprietary JMobile Studio software environment, which integrates over 200 communication protocols for seamless plug-and-play connectivity with leading global PLCs (Siemens, Omron, Mitsubishi, Schneider Electric, ABB, Allen-Bradley, Delta, etc.).

Hardware connectivity is comprehensive and robust, offering dual 10/100 Mbps Ethernet ports (supporting separate IP networks for OT/IT isolation), a multi-protocol Serial port (RS-232/RS-422/RS-485), two USB Host 2.0 ports, an SD card slot, and two Option Plugin Slots for Fieldbus expansion modules (CANopen, Profibus DP, DeviceNet, EtherCAT). Certified under CE, cULus Class I Div. 2, ATEX Zone 2/22, and DNV-GL marine standards, the EXOR eTOP510G represents a top-tier HMI panel for OEMs and system integrators worldwide.

• Manufacturer: EXOR International
• Product Line: eTOP500 Series
• Model: eTOP510G
• Display Size: 10.4 inch TFT LCD
• Resolution: 800 x 600 pixels (SVGA)
• Display Colors: 64K
• Front Panel: True-Flat Glass Front Panel
• Touchscreen Technology: Industrial Touch
• Backlight: LED (Lifetime up to 50,000 hours)
• CPU Processor: ARM Cortex-A8 1 GHz
• Flash Memory: 256 MB
• RAM Memory: 256 MB
• Communication Interfaces:
  - 2 x Ethernet 10/100 Mbit ports (Dual independent IP support)
  - 1 x Serial Port (RS-232 / RS-422 / RS-485)
  - 2 x USB Host ports (v2.0)
  - 1 x SD Card Slot
  - 2 x Option Plugin Slots (for Fieldbus modules: Profibus, CANopen, DeviceNet, etc.)
• Programming Software: JMobile Studio
• Operating Voltage: 24 VDC (10.5 to 32 VDC range)
• Protection Class: IP69K / IP66 (front panel), NEMA 4X
• Operating Temperature: 0°C to +50°C
• Certifications: CE, cULus Class I Div. 2, ATEX Zone 2/22, DNV-GL (Marine)
