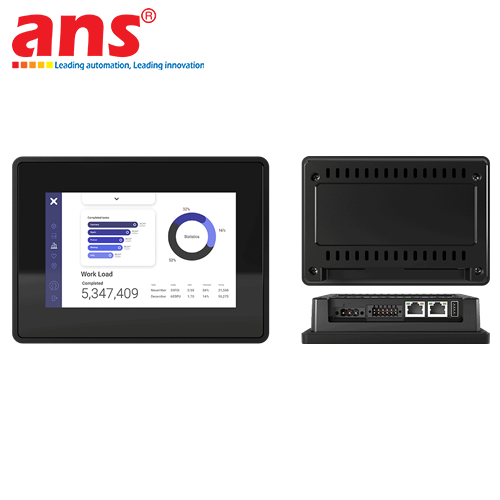

The EXOR Oceania eX205 Industrial HMI Touch Panel (part of the eX200 Series) is a compact, cost-effective human-machine interface that delivers powerful processing performance and industry-leading IIoT connectivity. Engineered and manufactured by EXOR International (Italy) and distributed by EXOR Oceania, the eX205 is an ideal choice for machinery OEMs and automation engineers seeking a reliable, high-quality HMI for space-constrained control cabinets.

Featuring a 5.0-inch WVGA (800x480 pixels) widescreen color display with 16.7 million colors and smooth touch response, the eX205 provides crisp visualization of operational data and process parameters. Its rugged front enclosure is sealed to IP66 standards, protecting against dust and liquid ingress in harsh industrial manufacturing environments.

Underneath its compact design, the EXOR eX205 is powered by a high-performance ARM Cortex-A7 Dual-Core processor, 1GB RAM, and 4GB Flash memory running on a real-time Linux operating system. Connectivity features include 2 x 10/100 Mbit Ethernet ports (enabling network separation between OT and IT levels), software-configurable RS-232/422/485 serial communication, and a USB 2.0 Host port.

Pre-loaded with EXOR’s powerful JMobile Runtime software, the eX205 supports rich vector graphics, over 200 industrial PLC communication protocols (Siemens, Mitsubishi, Omron, Schneider, ABB, etc.), OPC UA Server/Client, MQTT gateway capabilities, and Corvina Cloud connectivity, empowering smart factory integration and secure remote monitoring.

• Manufacturer: EXOR International / EXOR Oceania
• Product Line: Industrial HMI Touch Panels (eX200 Series)
• Model Reference: eX205
• Display Size: 5.0 inches (16:9 aspect ratio)
• Display Technology: TFT Color LCD, 16.7M colors
• Resolution: 800 x 480 pixels (WVGA)
• Touchscreen Technology: Capacitive / Industrial Resistive
• Backlight / Brightness: LED / 300 cd/m² (Dimming 0 - 100%)
• Processor (CPU): ARM Cortex-A7 Dual-Core 1.0 GHz
• Memory: RAM 1 GB | Flash Disk 4 GB
• Operating System: Linux RT
• Ethernet Ports: 2 x 10/100 Mbit (Integrated Switch/Bridge)
• Serial Port: 1 x RS-232/422/485 (Software configurable)
• USB Port: 1 x USB 2.0 Host
• Software / Runtime: JMobile Runtime (Supports OPC UA Server/Client, MQTT, CODESYS V3 SoftPLC)
• Power Supply Voltage: 24V DC (Operating range 10 - 32V DC)
• Front Panel Protection: IP66 (Dust-tight and water resistant)
• Operating Temperature: -10°C to +60°C
• Storage Temperature: -20°C to +70°C
• Operating Humidity: 5 - 85% RH (Non-condensing)
• Certifications: CE, cULus Class I Div 2, ATEX Zone 2/22, IECEx Zone 2/22
• Panel Cutout Dimensions: 136 x 96 mm
• Overall Dimensions (W x H x D): 147 x 107 x 38 mm
• Net Weight: ~0.8 kg
